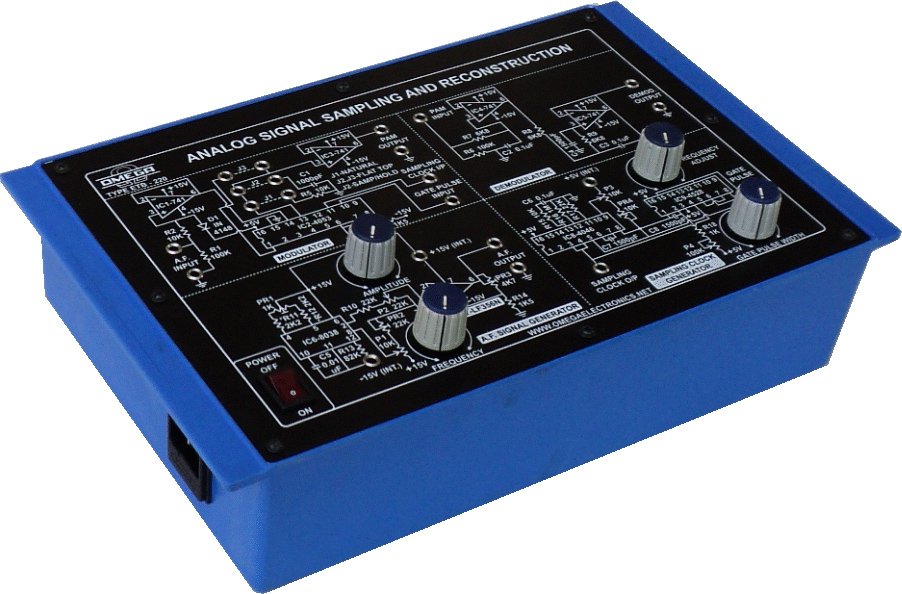

ETB-220
Analog Signal Sampling and Reconstruction with Power Supply
Experimental Training Boards (ETB Series)
Technical Specification
To study Sampling Theorem using Pulse Amplitude Modulation and Demodulation.
01 To generate PAM signal by modulating with audio signal by natural sampling.
02 To generate PAM signal by modulating with audio signal by Flat-Top sampling.
03 To generate PAM signal by modulating with audio signal by Sample / Hold circuit.
04 To demodulate using Low Pass Filter to reconstruct input(sine wave).
