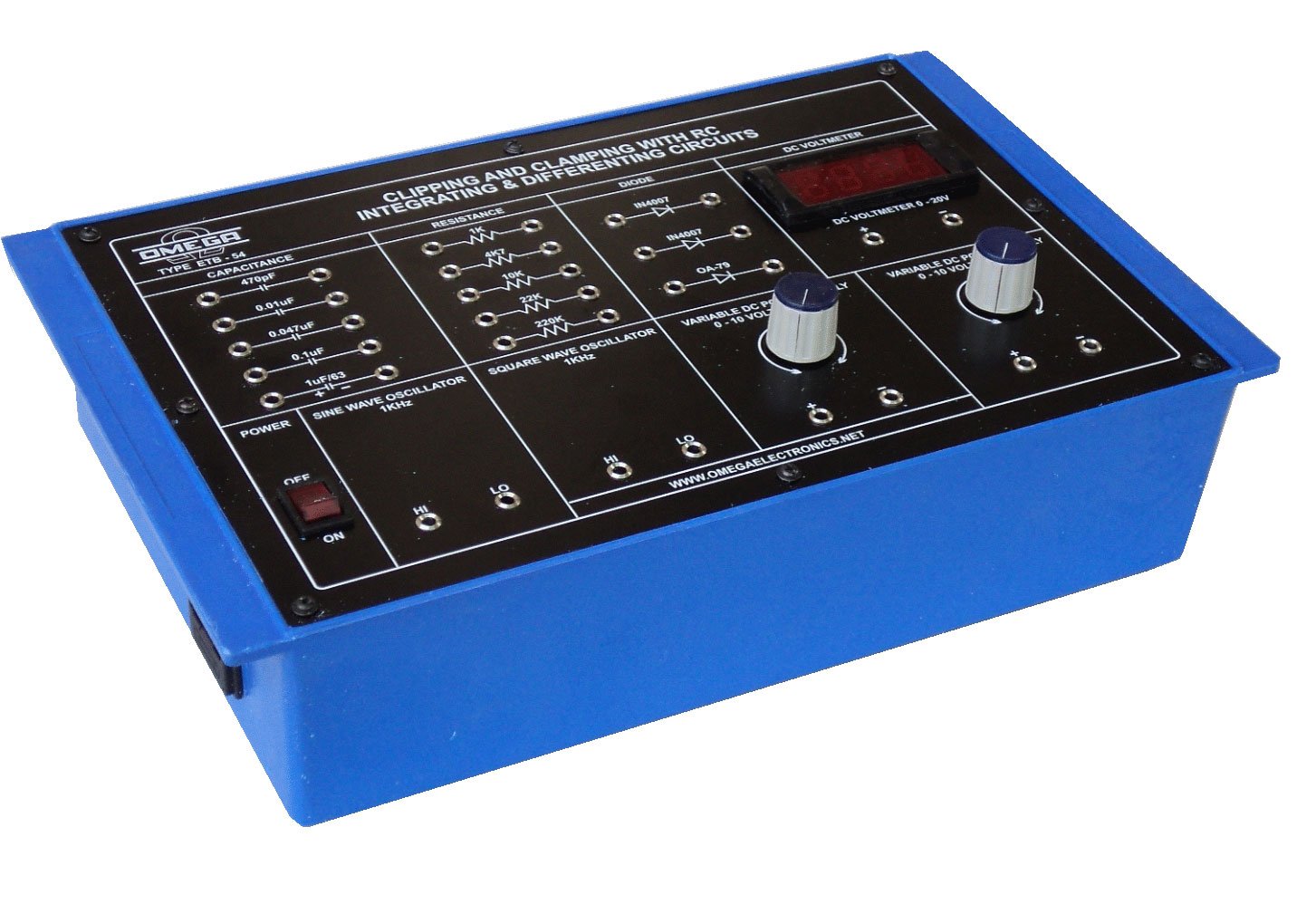

ETB-54
Clipping And Calmping With RC Integrating & Differentiating Circuit (With Oscillator)
Experimental Training Boards (ETB Series)
Technical Specification
01 To Study of Series Positive Clipper Circuits.
02 To Study of Series Negative Clipper Circuits.
03 To Study of Shunt Positive Clipper Circuits.
04 To Study of Shunt Negative Clipper Circuits.
05 To Study of Biased Series Positive Clipper Circuits.
05.1 Biased Series Positive Clipper with Positive Power Supply.
05.2 Biased Series Positive Clipper with Negative Power Supply.
06 To Study of Biased Series Negative Clipper Circuits.
06.1 Biased Series Negative Clipper with Positive Power Supply.
06.2 Biased Series Negative Clipper with Negative Power Supply.
07 To Study of Biased Shunt Positive Clipper Circuits.
07.1 Biased Shunt Positive Clipper with Positive Power Supply.
07.2 Biased Shunt Positive Clipper with Negative Power Supply.
08 To Study of Biased Shunt Negative Clipper Circuits.
08.1 Biased Shunt Negative Clipper with Positive Power Supply.
08.2 Biased Shunt Negative Clipper with Negative Power Supply.
09 To Study of Combination Clipper Circuit.
10 To Study of Positive Clamper Circuits.
11 To Study of Negative Clamper Circuits.
12 To Study of Biased Positive Clamper Circuit.
12.1 Biased Positive Clamper with Positive Power Supply.
12.2 Biased Positive Clamper with Negative Power Supply.
13 To Study of Biased Negative Clamper Circuit.
13.1 Biased Negative Clamper with Positive Power Supply.
13.2 Biased Negative Clamper with Negative Power Supply.
14 To Study of Integrating Circuit at 1KHz for Different Combination of R&C.
15 To Study of Differentiating Circuit at 1KHz for Different Combination of R&C.
