ETB-001

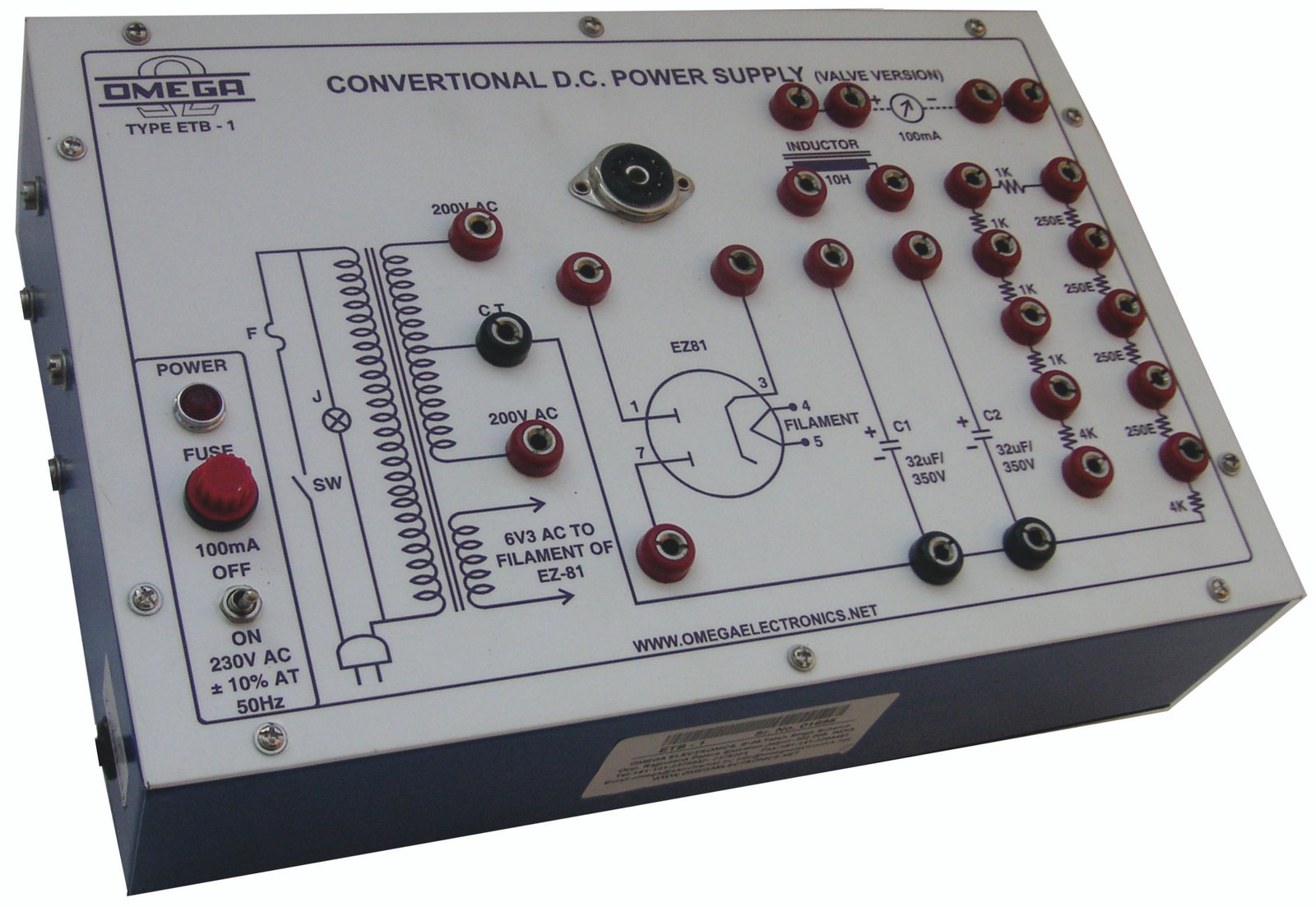

Conventional D.C. Power Supply (V.V)
Experimental Training Boards (ETB Series)
Technical Specification
01 Half wave rectification and determination of ripple factor, and load characteristics.
02 Full wave rectification and determination of ripple factor, and load characteristics.
03 To study and determine the load characteristics and ripple factor of the following filters:
3.1 Inductor filter.
3.2 Capacitor filter.
3.3 Choke input or LC filter.
3.4 CLC or p filter.
