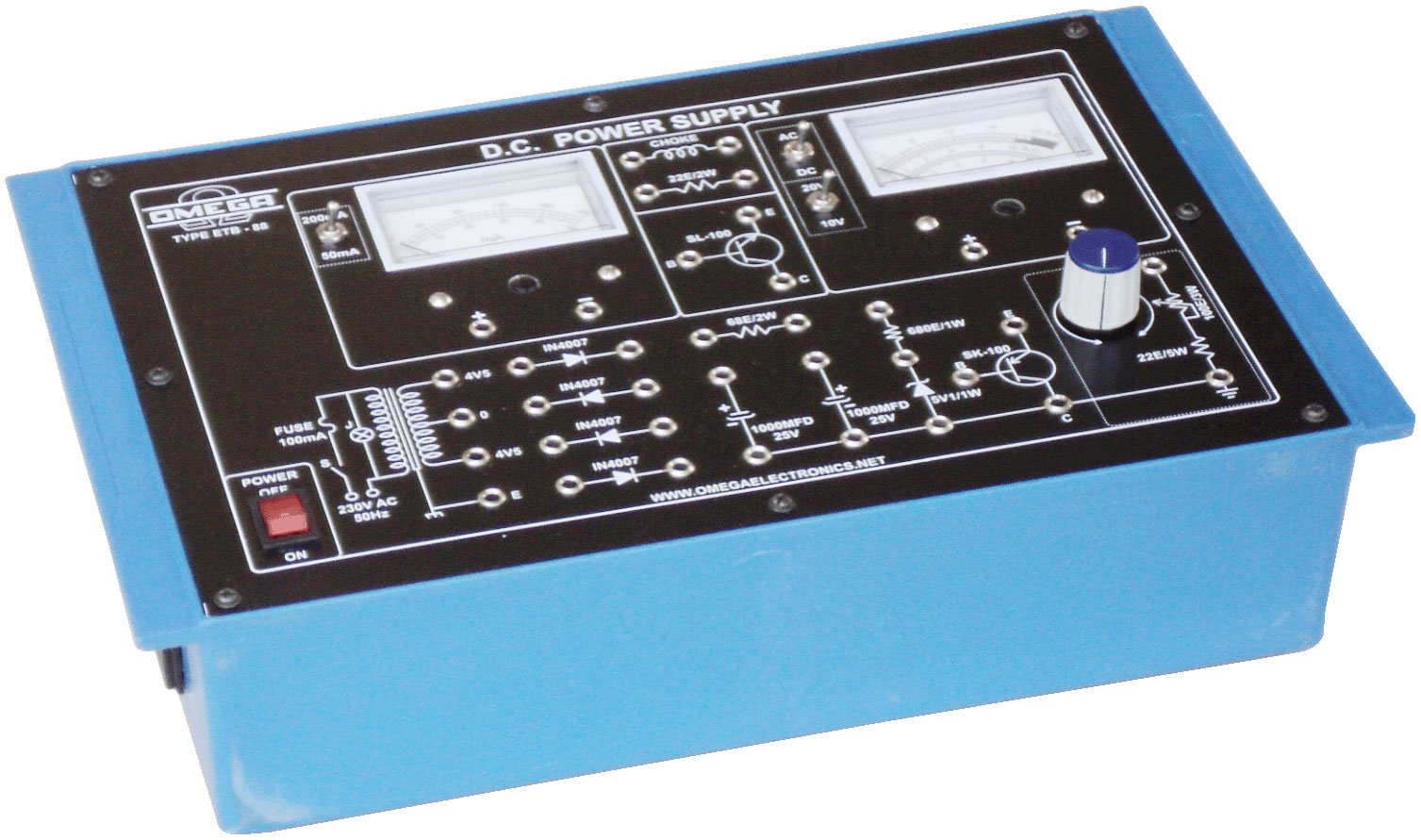

ETB-88
D.C. Power Supplies and 2 dual range meters
Experimental Training Boards (ETB Series)
Technical Specification
01 Study of basic techniques of D.C. Power Supplies :
1.1 Use of a diode as a rectifier (Half wave rectification).
1.2 Study of full wave rectification using a centre tapped transformer.
1.3 Study of full wave rectification using a bridge rectifier.
1.4 Using a zener diode for regulation.
1.5 To use a transistor as a series regulator.
1.6 To use a transistor as a shunt regulator.
1.7 To study methods of ripple reduction.
02 To measure basic parameters on a D.C. Power Supply :
2.1 Line regulation.
2.2 Load regulation.
2.3 Ripple factor.
