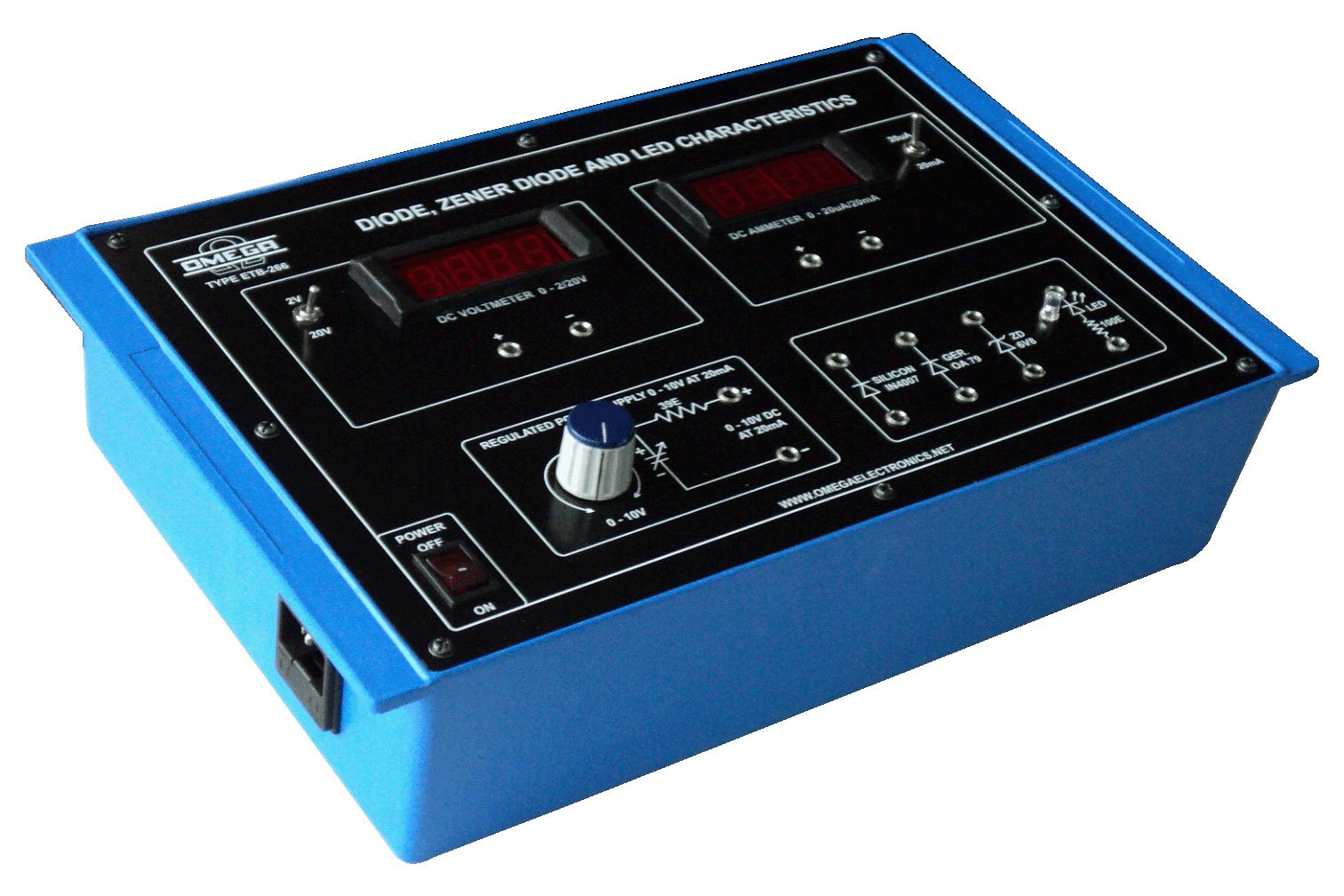

ETB-266
Diode, Zener Diode & LED Characteristics
Experimental Training Boards (ETB Series)
Technical Specification
01 To study and plot the forward & reverse bias characteristics of a Germanium semiconductor Diode.
02 To study and plot the forward & reverse bias characteristics of a Silicon semiconductor Diode.
03 To study and plot the forward & reverse bias (breakdown) characteristics of a Zener Diode.
04 To study the characteristics of Light Emitting Diode (LED).
