ETB-232

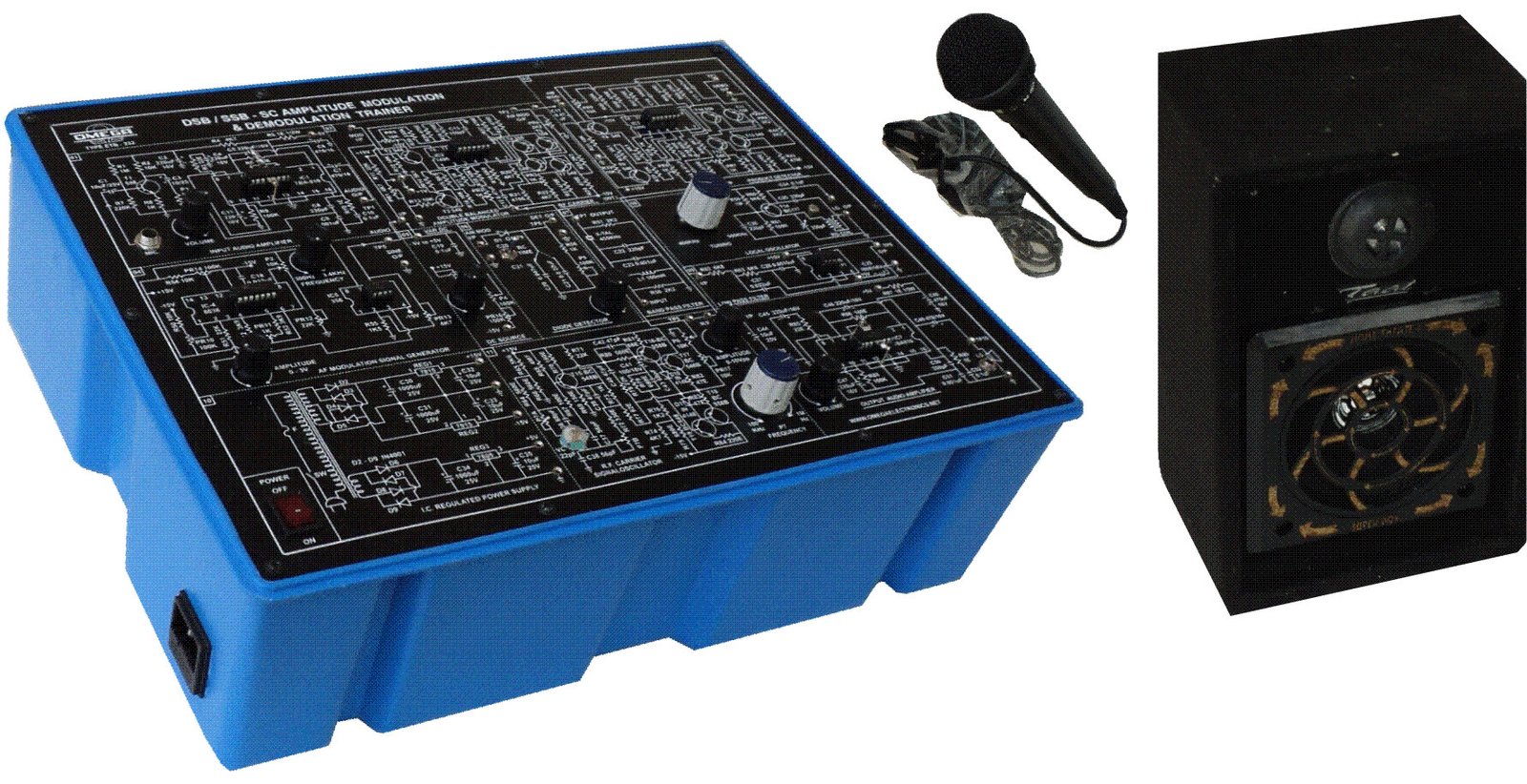

DSB / SSB amplitude modulation & demodulation trainer
Experimental Training Boards (ETB Series)
Technical Specification
01 Amplitude Modulation & Demodulation.
1.1 Generate AM signal by modulation with audio signal generator
1.2 Measure modulation index of A.M. signal 1.3 Demodulate AM signal using diode detector (envelope detector)
1.4 Generate voice signal AM modulation and demodulation using Mic.
1.5 Observe the effect of DC signal input on AM output 1.6 Demodulate AM signal by square law detection
02 DSB-SC Amplitude Modulation & Demodulation.
2.1 Generate DSB-SC AM signal 2.2 Demodulate DSB-SC signal using product detector
03 SSB-SC Amplitude Modulation & Demodulation
3.1 Generate SSB-SC AM signal
3.2 Demodulate SSB-SC signal using product detector
