ETB-53

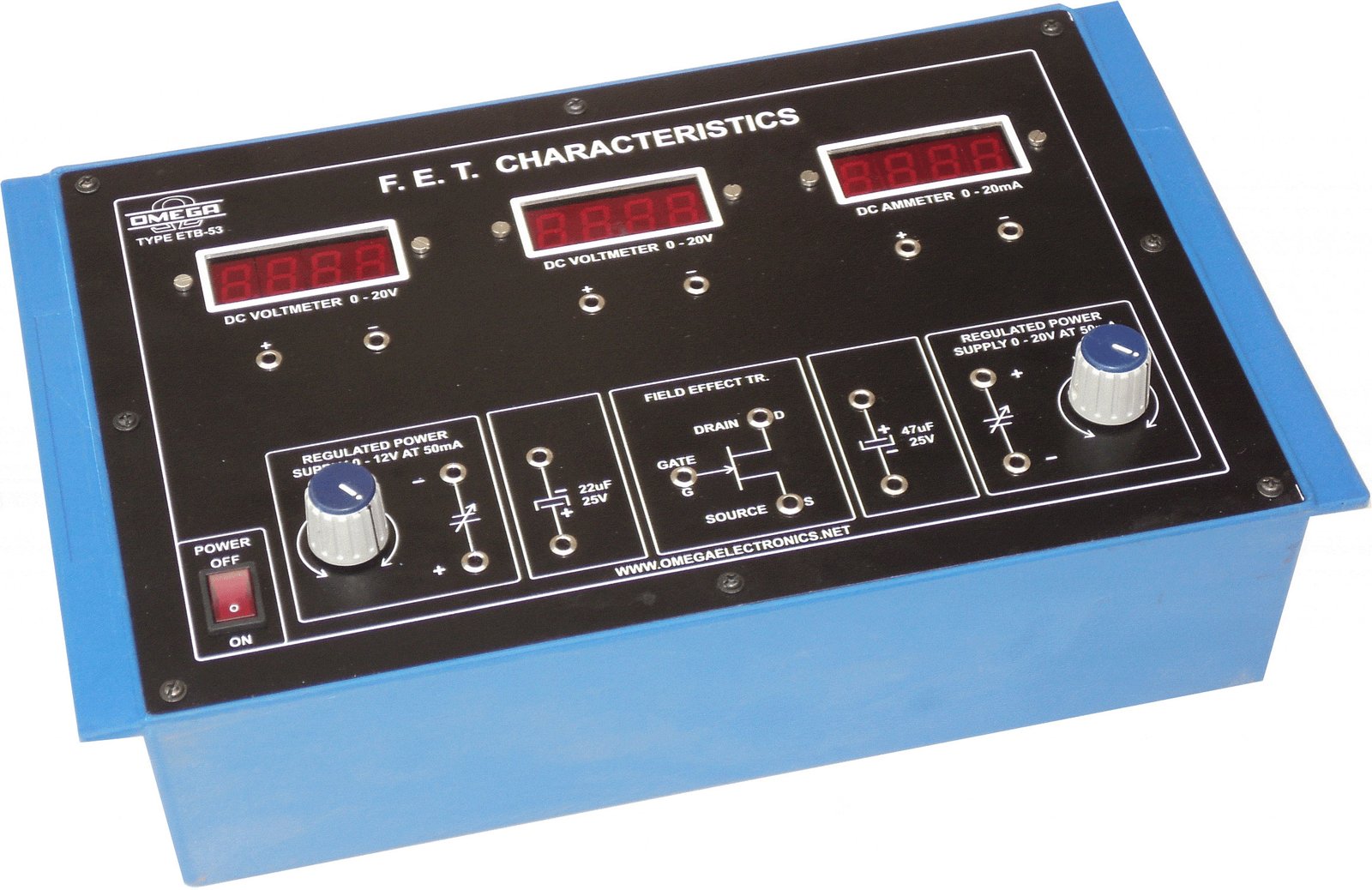

F.E.T. Characteristics with power supply and 3 meters (C.R.)
Experimental Training Boards (ETB Series)
Technical Specification
01 Measurement of IDSS
02 Plot the static drain characteristics of FET
2.1 Drain Current V/s Drain Voltage Characteristics for different fixed values of VGS
2.2 Drain Current V/s Gate Bias Characteristics for different fixed values of VDS
03 Show that FET work as VVR (voltage variable resistance).
04 Calculate the FET parameters (drain dynamic resistance rd, mutual conductance gm,
and amplification factor m) at a given operating point.
