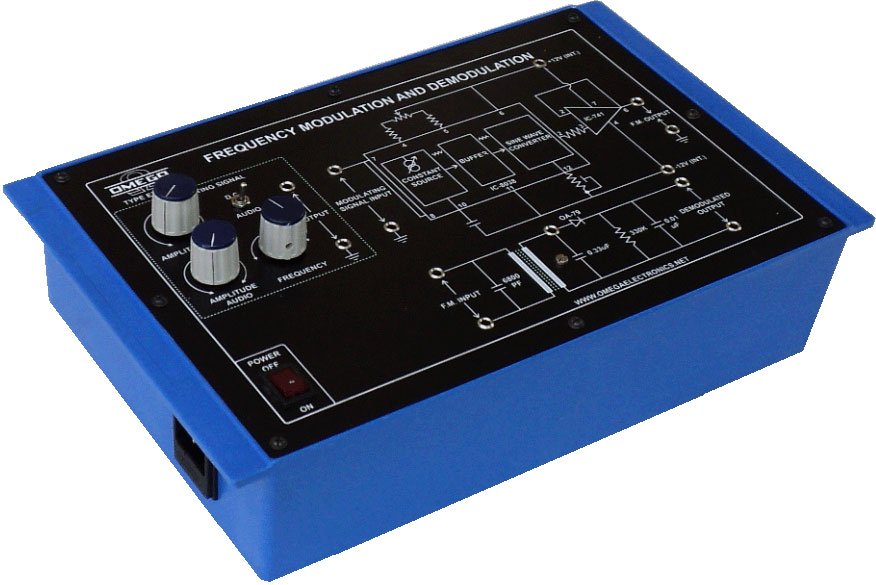

ETB-98
Frequency Modulation & Demodulation with power supply
Experimental Training Boards (ETB Series)
Technical Specification
01 To observe the effect of D.C. voltage on frequency of carrier waveform.
02 To frequency modulate the carrier with Audio signal, observe F.M. waveform on C.R.O., and measure its modulation index.
03 To demodulate the F.M. singal and observe the output on C.R.O.
04 To plot the characteristics curve of the slope detector demodulating circuit.
