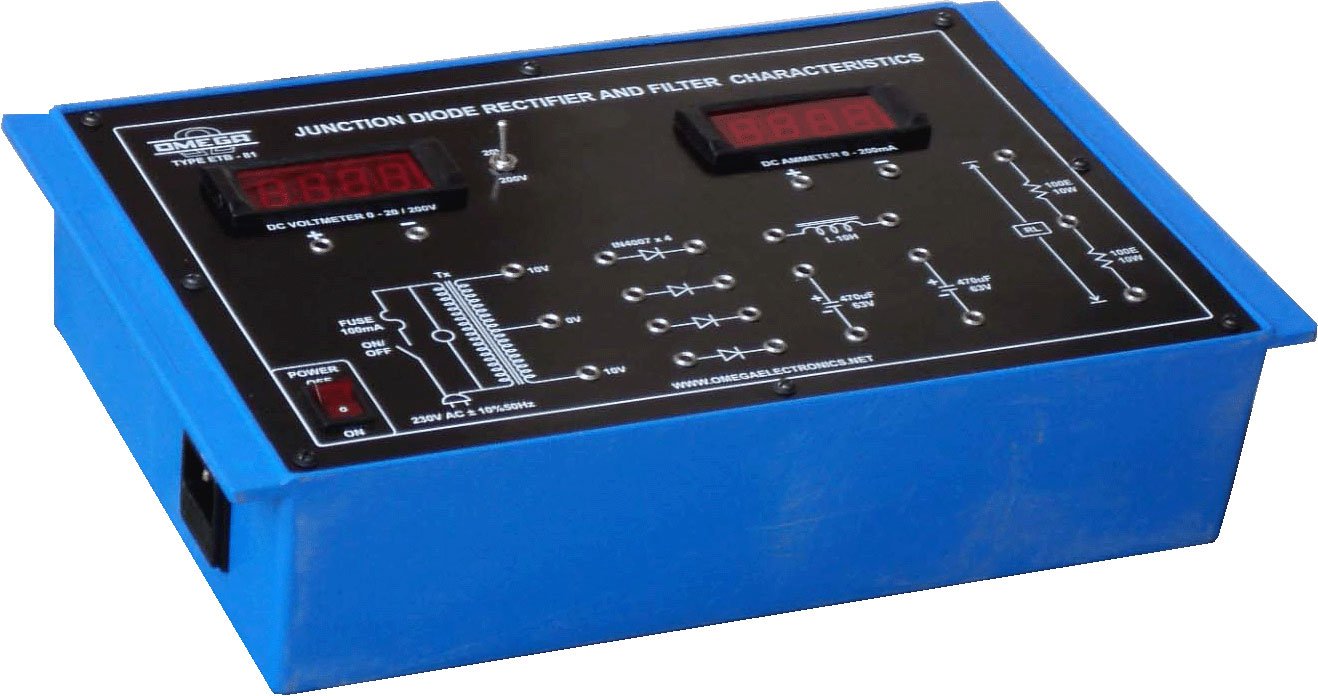

ETB-81
Junction Diode Rectifier & Filter Characteristics with power supply and 2 meters
Experimental Training Boards (ETB Series)
Technical Specification
01 Study of Junction Diode Rectifier output and ripple content for different resistive loads for :
1.1 Half wave.
1.2 Full wave (Center Tap).
1.3 Full wave (Bridge).
1.4 Voltage Doubler Circuit.
02 Study of filter and load regulation characteristics for half wave and full wave rectifier having different resistive loads and filters of the type :
2.1 Capacitor filter.
2.2 Capacitor Filter with capacitor value doubled.
2.3 Inductor filter.
2.4 Capacitor input L section filter.
2.5 Capacitor input p section filter.
