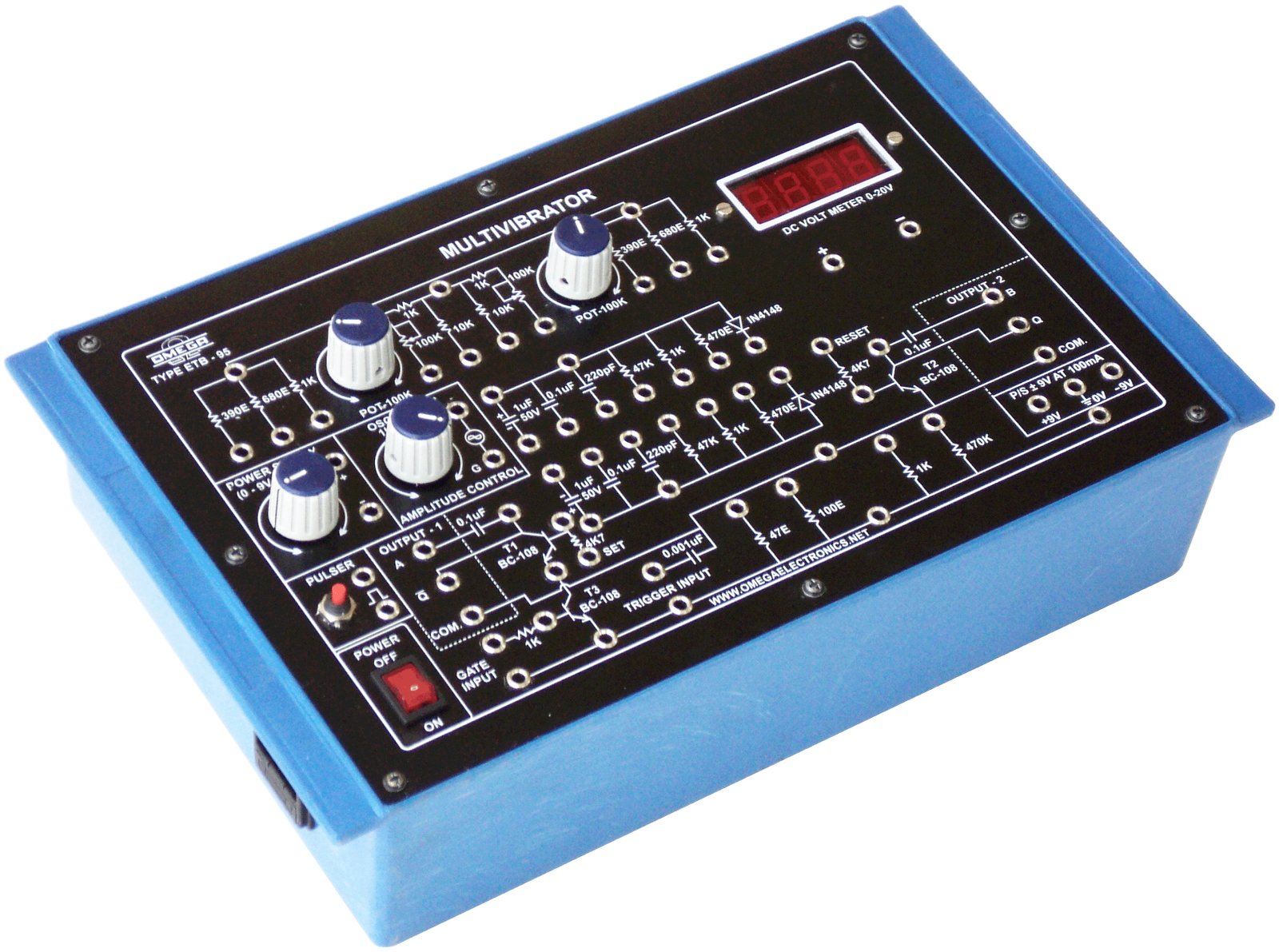

ETB-095
Multivibrators with power supply and 1 meters
Experimental Training Boards (ETB Series)
Technical Specification
01 To study multi vibrator circuits.
02 Design of multi vibrators.
03 To study the waveforms of a free running multivibrator.
04 To design and make a bistable multivibrator and to study its D.C. conditions.
05 To design and make a monostable multivibrator and to adjust its delay time.
06 To design and make schmitttrigger and study its hysteresis.
07 To control the frequency of a free running multivibrator with applied voltage.
08 To design and make a gated free running multivibrator.
09 To design and make an improved free running multivibrator.
