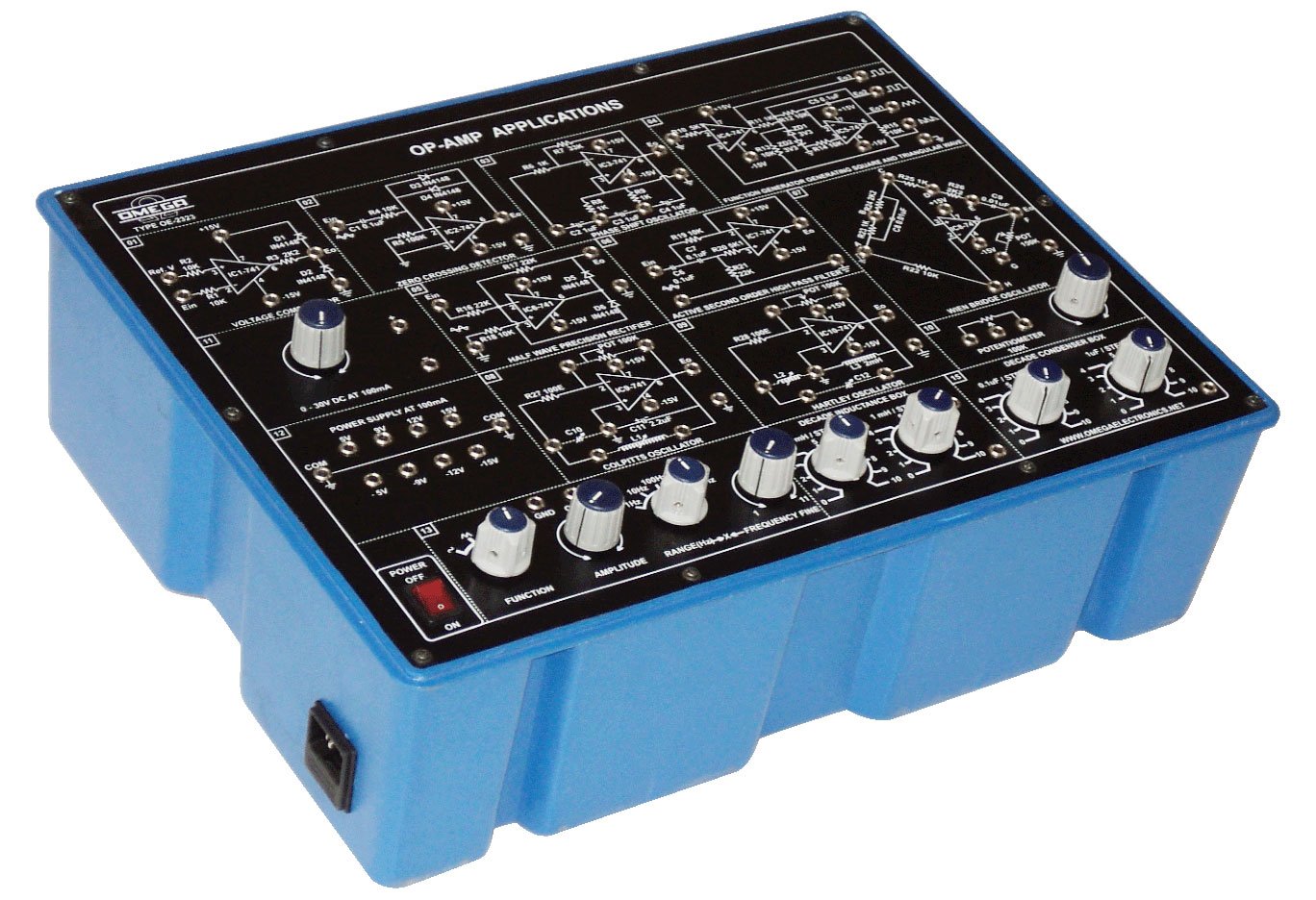

ETB-251
Op Amp Applications
Experimental Training Boards (ETB Series)
Technical Specification
01 Study and observe Op-Amp as Voltage Comparator
02 Study and observe Op-Amp as Zero Crossing Detector
03 Study and observe Op-Amp as a Phase Shift Oscillatorand its phase shift at every RC combination
04 Study and observe Op-Amp as a Function generator, generating Square and Triangle wave
05 Study and observe Op-Amp as a Half Wave Precision Rectifier
06 Study and observe Op-Amp as active second order High Pass Filter
07 Study and observe Op-Amp as a Wien Bridge Oscillator and its gain factor for a smooth sine wave
08 Examine the operation of colpits oscillator
09 Examine the operation of hartley oscillator
