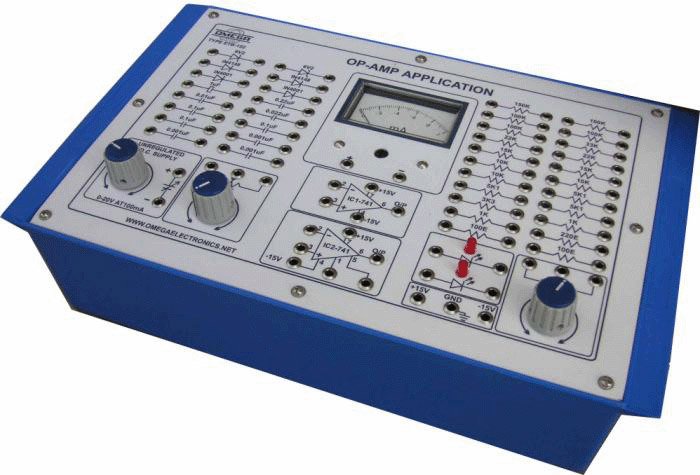

ETB-152
Op-Amp Applications with power supply and 1 meters
Experimental Training Boards (ETB Series)
Technical Specification
To study the following OP-AMP applications:
01 Square Wave generator.
02 Pulse & Ramp generator.
03 Triangular Generator.
04 Sine Wave Generator using Wien Bridge, Phase Shift Network.
05 Active Filters :
5.1 Low Pass Filter.
5.2 High Pass Filter.
5.3 Band Pass Filter.
5.4 Notch Filter.
06 Voltage Regulators.
07 Null Detector.
08 D.C. Microammeter.
