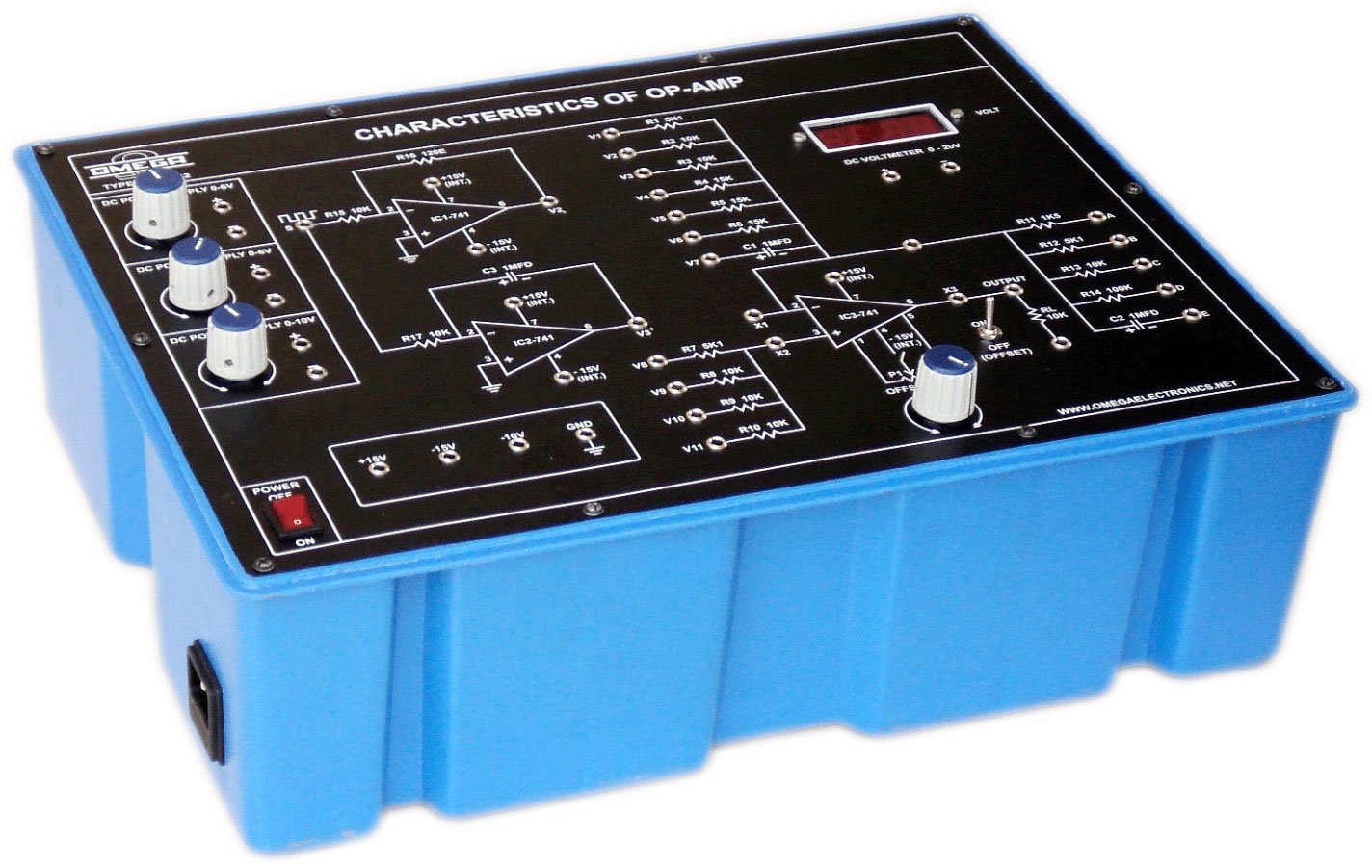

ETB-242
Op-Amp Characteristics
Experimental Training Boards (ETB Series)
Technical Specification
01 To study nullify the offset voltage of Op-Amp 741
02 To study measure the slew rate of Op-Amp IC 741
03 To study the inverting amplifier circuit using
Op-Amp 741 (Using DC Power Supply & Function Generator).
04 To study the non-inverting amplifier using Op-Amp IC-741 (Using DC Power Supply & Function Generator).
05 To study the adder circuit in Inverting & Non Inverting Mode
06 To study the Averaging amplifier circuit in inverting configuration with three inputs
07 To study the Averaging amplifier circuit in non-inverting configuration with three inputs.
08 To study the difference amplifier circuit using Op-Amp 741
09 To study the subtractor circuit using Op-Amp 741.
10 To study the scaling amplifier in Inverting and Non-inverting configuration using Op-Amp 741.
11 To study the voltage follower using Op-Amp 741 (Using DC Power Supply & Function Generator).
12 To study the open-loop comparator using Op-Amp 741.
13 To study the Inverting Comparator as Schmitt trigger using Op-Amp 741 (Using DC Power Supply & Function Generator).
14 To study the differentiator circuit using Op-Amp 741.
15 To study the integrator circuit using Op-Amp 741.
16 To study of P-I (Proportional Integration) Action.
