ETB-244

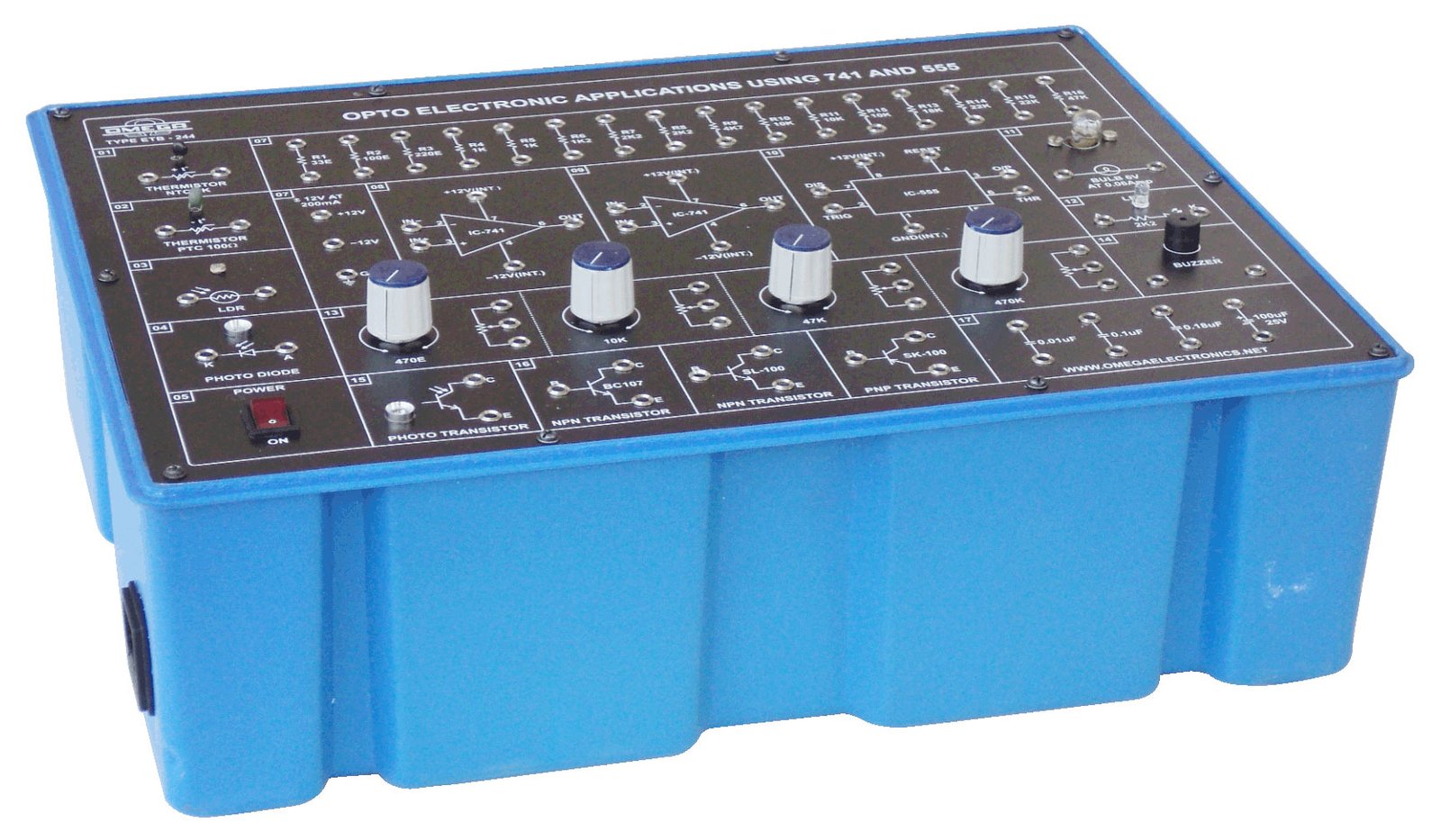

Optoelectronic Applications using 741 and 555
Experimental Training Boards (ETB Series)
Technical Specification
STUDY OF TIMER IC-555 USING SENSOR CIRCUIT (OPTO ELECTRONICS)
01 To Study Burglar Alarm Using Timer IC-555 & Breaking of wire and LDR.
02 To Study Burglar Alarm Using Timer IC-555 Breaking of Wire & Photo Transistor
03 Burglar Alarm Using Timer IC-555 Breaking of wire and Photo Diode.
STUDY OF OPERATIONAL AMPLIFIER USING SENSOR CIRCUIT (OPTO ELECTRONICS)
04 LED Driver using 741 OP Amp.
05 Lamp Drivers using 741 OP Amp.
06 Temperature ON- OFF Controller with Thermistor NTC.
07 Temperature ON-OFF Controller with Thermistor Using PTC.
08 Burglar Alarm using OP Amp 741 and LDR.
09 Burglar Alarm using OP Amp 741 and Photo Diode.
10 Burglar Alarm using OP Amp 741 and Photo Transistor.
