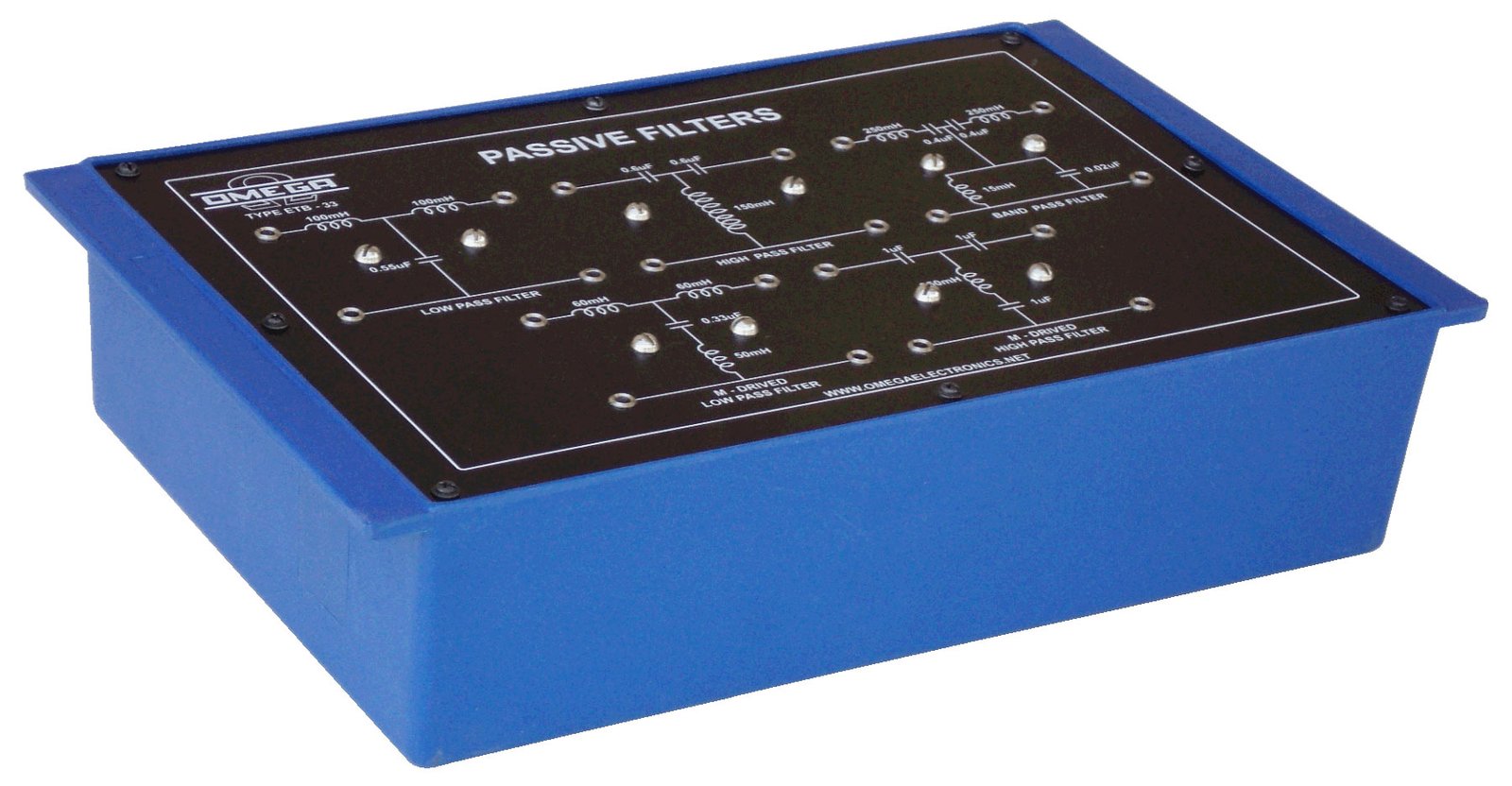

ETB-33
Passive Filters (Constant-K, Low, High and Band M-derived low & high)
Experimental Training Boards (ETB Series)
Technical Specification
To study different types of passive filters and determine the different constants and cut-off frequency of the following passive filters :
01 Low-Pass constant-K filter.
02 High-Pass constant-K filter.
03 Band-Pass constant-K filter.
04 Low-Pass M-Derived filter.
05 High-Pass M-Derived filter.
