ETB-219

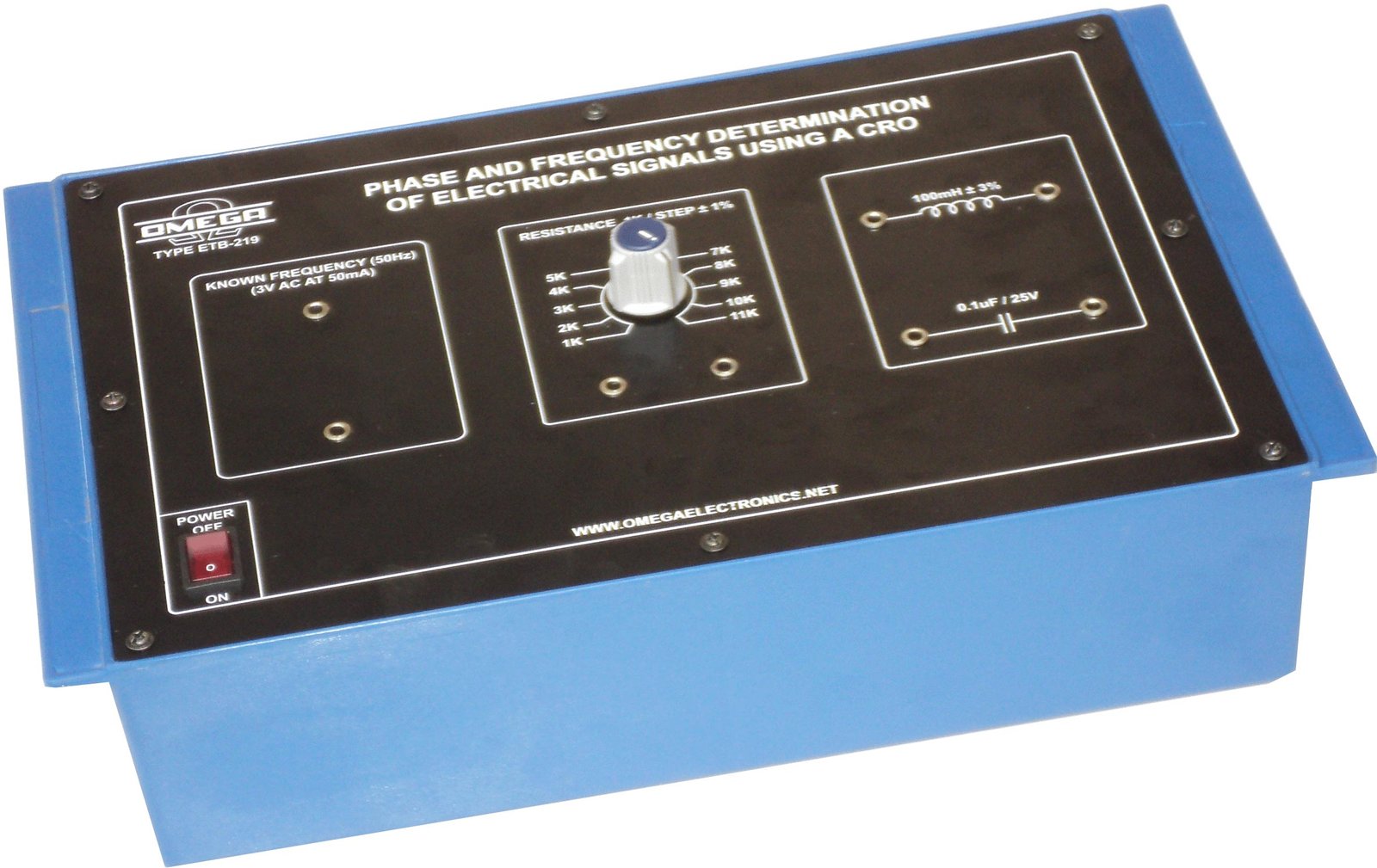

Phase and Frequency determination of electrical signals using a CRO (Lissajous Figures)
Experimental Training Boards (ETB Series)
Technical Specification
To study analog CRO, Measurement of time period, amplitude, frequency and phase angle using Lissajous Figures.
01 Study of CRO.
02 Measurement of time period CRO.
03 Measurement of amplitude CRO.
04 Measurement of frequency using Lissajous Figures.
05 Measurement of phase angle using Lissajous Figures.
