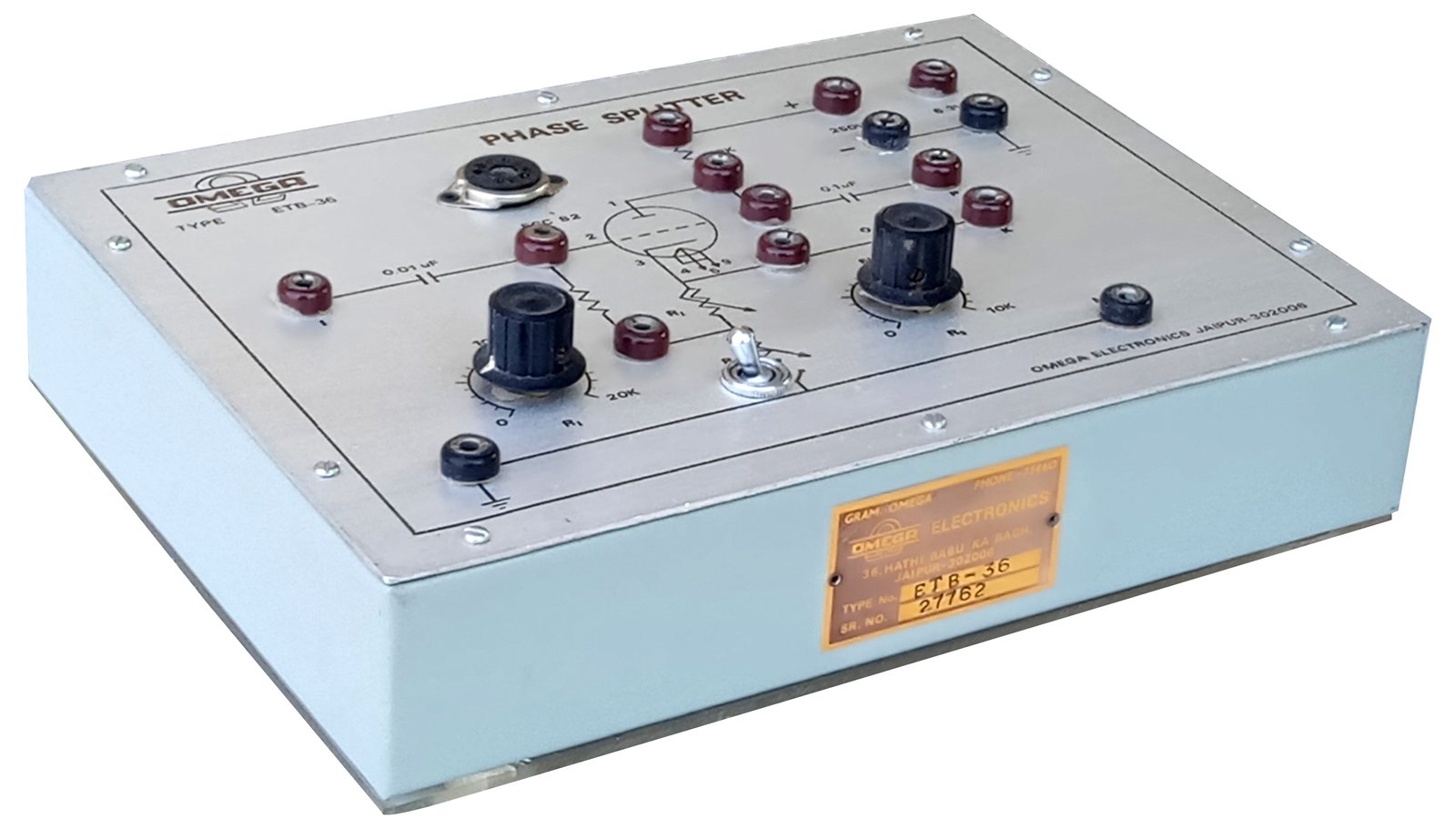

ETB-36
Phase Splitter (V.V.)
Experimental Training Boards (ETB Series)
Technical Specification
Study of Phase Splitter:
01 To draw the cathode degenerative amplifier characteristics from Ea - Ia curve of the tube and to determine the component values, cathode voltage swing, plate voltage swing, maximum allowable in put peak, power output and distortion.
02 To verify the values with experimental set-up.
03 To measure output and input impedances.
