ETB-131

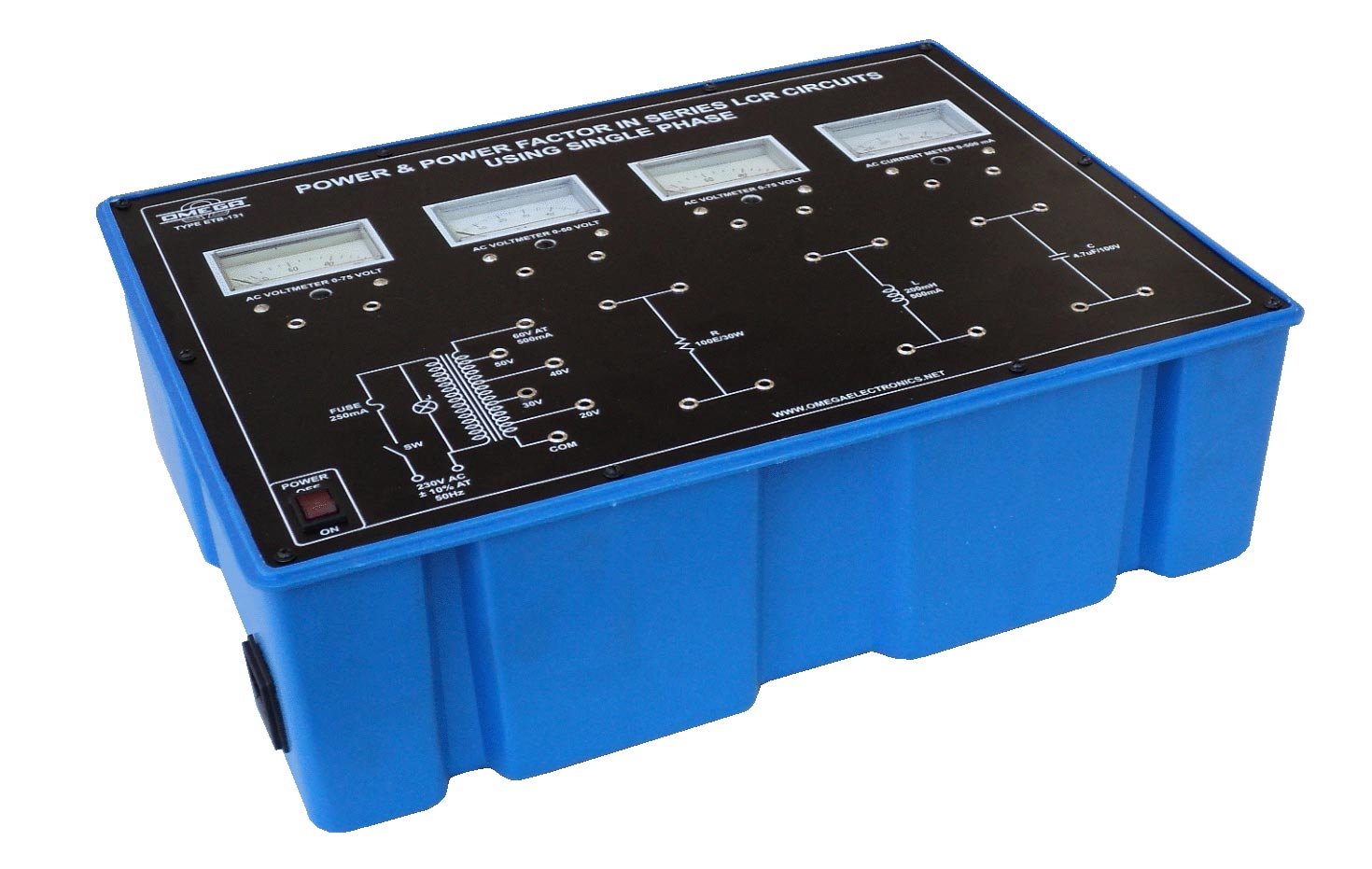

Power & Power Factor in Series LCR Circuits using single phase with power supply and 4 meters
Experimental Training Boards (ETB Series)
Technical Specification
Determination of Power and Power Factor in series RLC circuit using Single Phase.
01 Study of Series RLC Circuit using Single Phase A.C. and to determine
1.1 Power
1.2 Power Factor and also draw the vector diagram.
02 Study of Series R-L Circuit using Single Phase A.C. and to determine
2.1 Power
2.2 Power Factor and also draw the vector diagram.
03 Study of Series R-C Circuit using Single Phase A.C. and to determine
3.1 Power
3.2 Power Factor and also draw the vector diagram.
