ETB-29

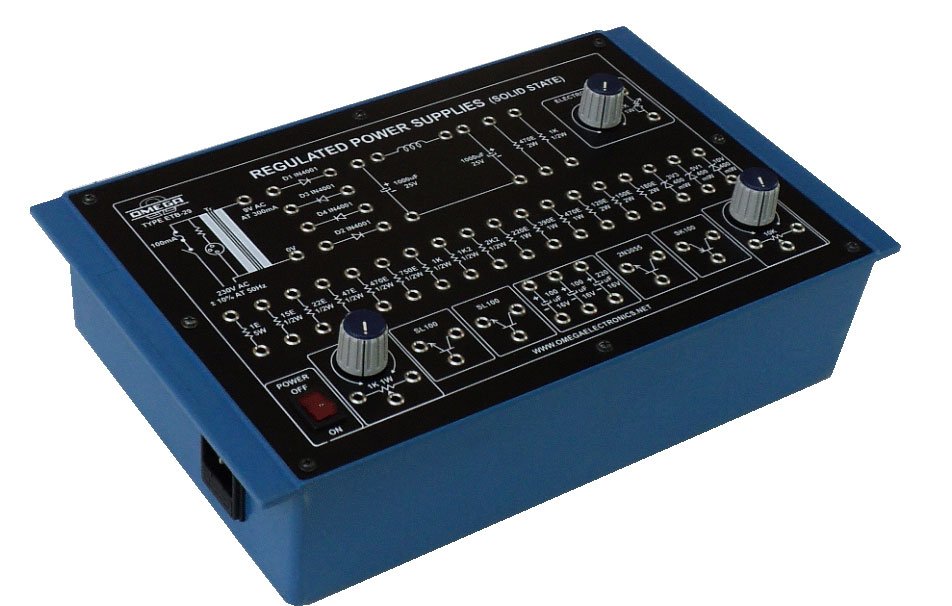

Regulated Power Supplies
Experimental Training Boards (ETB Series)
Technical Specification
01 To study half wave rectification.
02 To study full wave rectification.
03 To study measurement of ripple and ripple reduction methods using the following:
3.1 Capacitor filter. 3.2 Inductor filter.
3.3 Choke input of L.C. filter. 3.4 CLC or p filter.
04 To study Zener - diode voltage regulator circuit.
05 To study series voltage regulator.
06 To study series regulator with current limiting.
07 To study error feed-back type series voltage regulator.
08 To study the use of Darlington transistor pair for increasing the current capability of series voltage regulator.
09 To study a shunt voltage regulator with current limiting.
10 To study a shunt voltage regulator with adjustable current limiting.
11 To study a 0-9V D.C. continuously variable volt age regulated power supply and measure the following:
11.1 Line regulation.
11.2 Load regulation.
11.3 Ripple factor.
