ETB-42

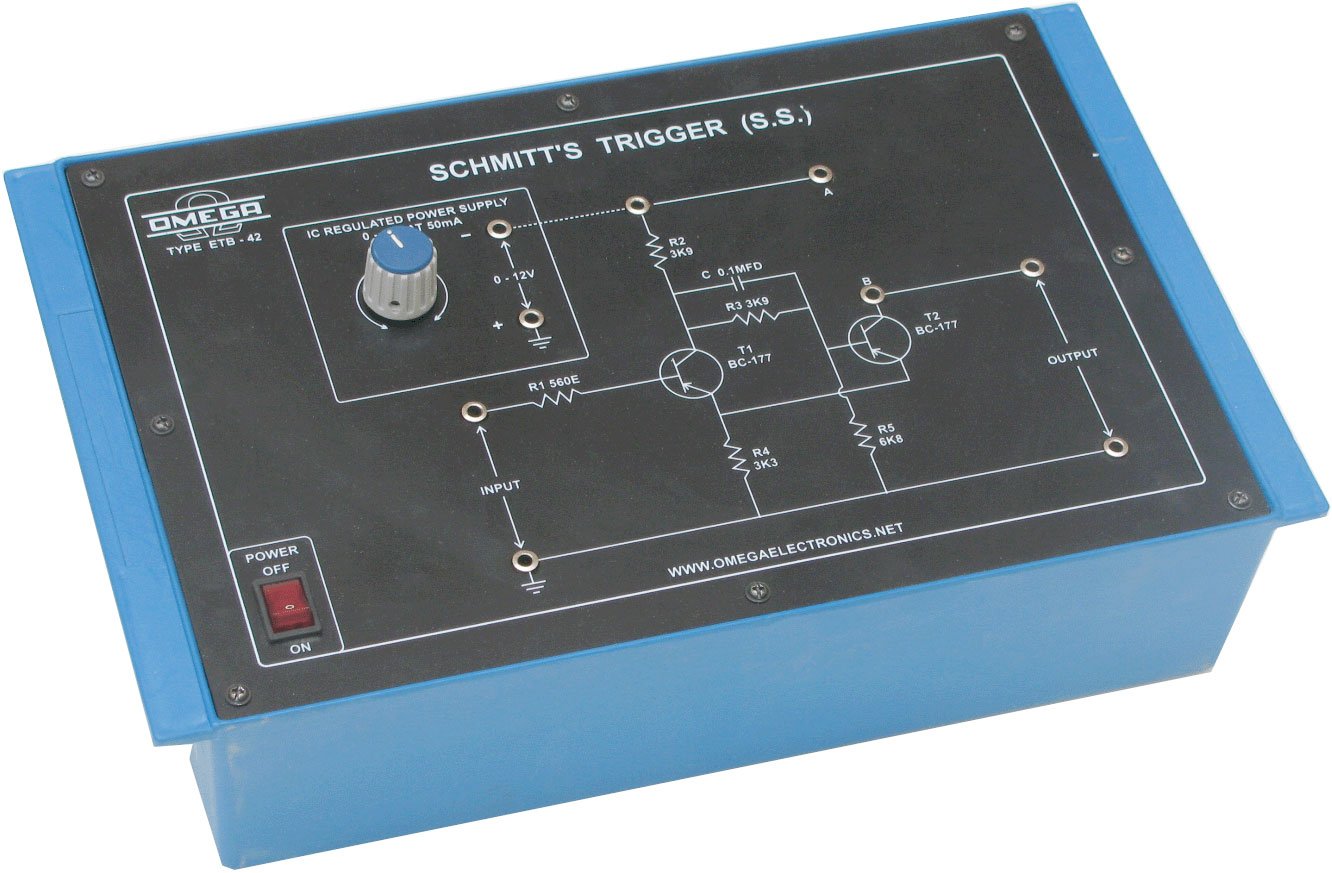

Schmitt's Trigger with power supply
Experimental Training Boards (ETB Series)
Technical Specification
Study of schmittâs transistor Binary circuit :
01 To find loop gain of the binary circuit and to see the parameters responsible for making the loop gain to 1
02 To adjust the loop gain to be less than 1 and to see linear amplification.
03 To adjust the loop gain to be slightly greater than 1 and to observe the switching action.
