ETB-55

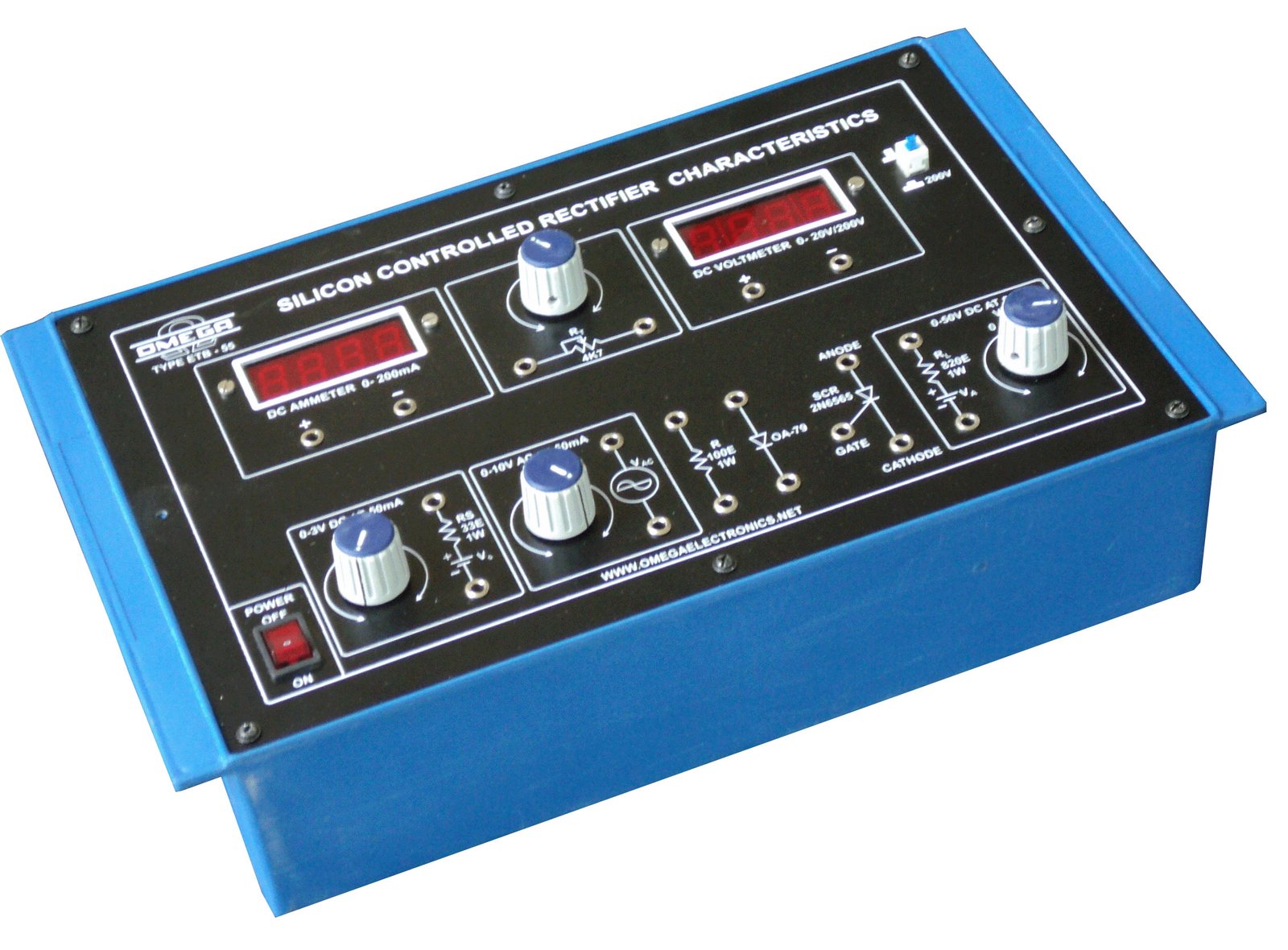

Silicon Controlled Rectifier Characteristics with power supply and 2 meters
Experimental Training Boards (ETB Series)
Technical Specification
01 To study the DC gate control characteristics (firing characteristics) of a SCR.
02 To study and plot the anode current characteristics of a SCR.
03 To measure the holding current of a SCR.
04 To study the plot the phase firing characteristics of a SCR.
