ETB-122

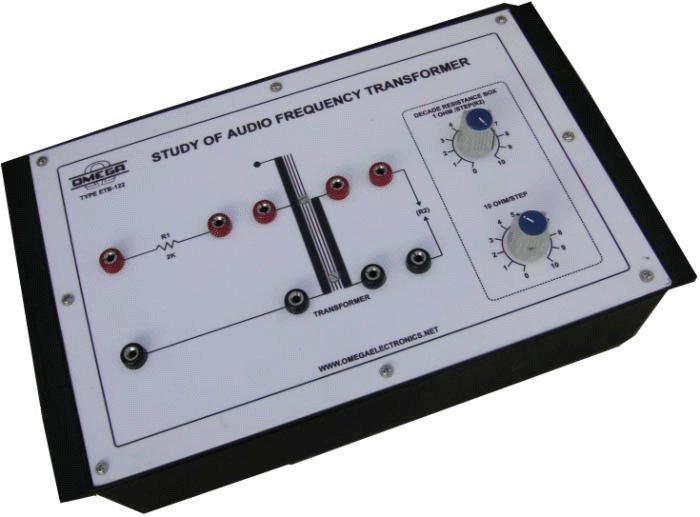

Study of Audio Frequency Transformer
Experimental Training Boards (ETB Series)
Technical Specification
To study an Audio Frequency Transformer.
01 To measure the transformer ratio of an A.F. Transformer.
02 To find out the optimum value of load resistance to match with A.F. Transformer.
03 To plot transmission curve for A.F. Transformer.
04 To plot linearity curves for A.F. Transformer.
