ETB-139

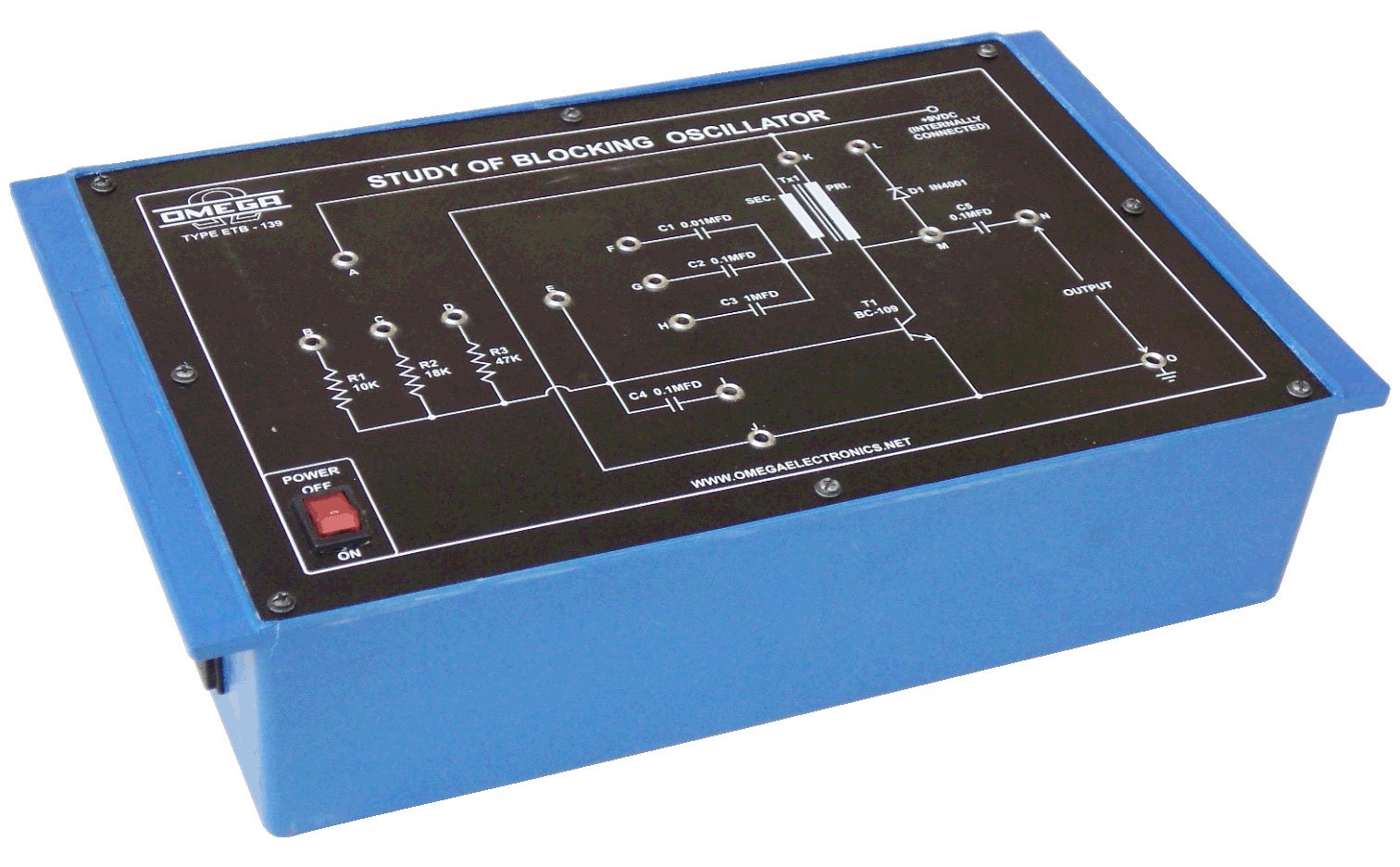

Study of Blocking Oscillator with power supply
Experimental Training Boards (ETB Series)
Technical Specification
01 To observe on a C.R.O. the waveforms at the base and collector of an Astable Blocking Oscillator :
(a) Without connecting the diode
(b) After connecting the diode
02 To measure the pulse width and the frequency of the pulse-train with various combinations of
C and R values.
