ETB-130

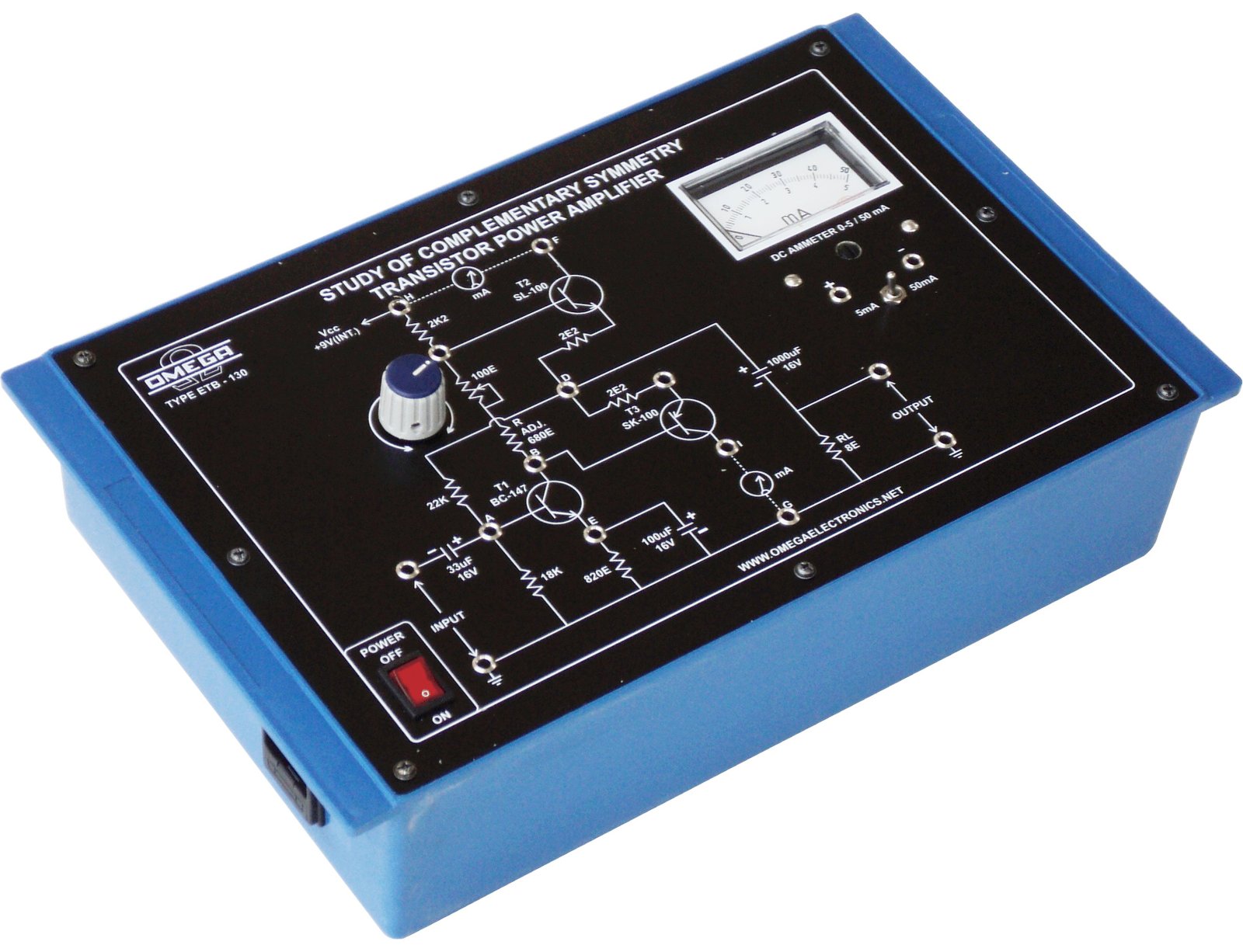

Study of Complimentary-Symmetry Transistor Power Amplifier with power supply and 1 meters
Experimental Training Boards (ETB Series)
Technical Specification
To study the complementary symmetry transistor power amplifier.
01 To measure the D.C. Voltage at certain test points with signal and without signal.
02 To measure the D.C. bias current (with and without signal) and also to measure the idling current.
03 To measure input and output impedances and power gain.
