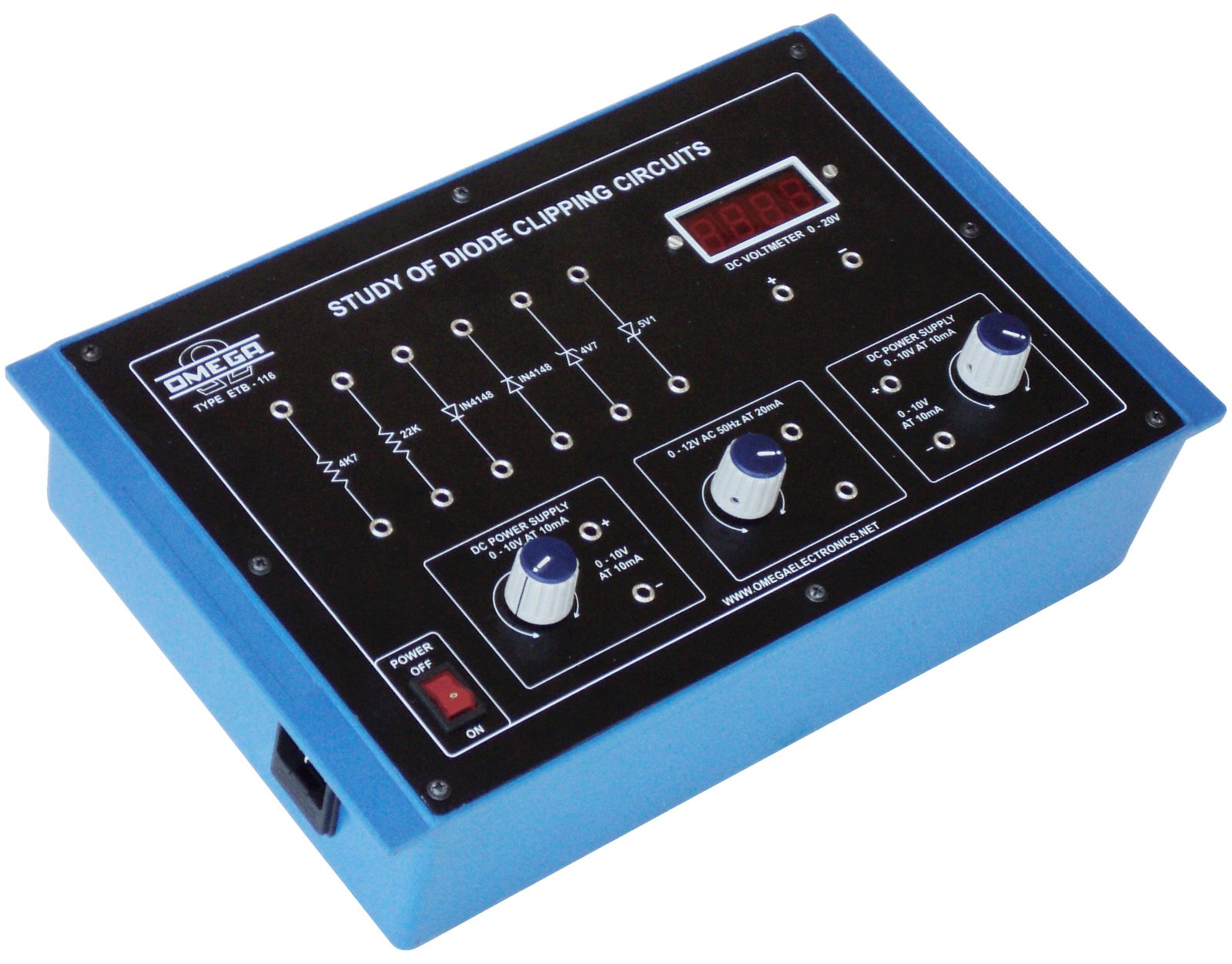

ETB-116
Study of Diode Clipping Circuits with power supply and 1 meters
Experimental Training Boards (ETB Series)
Technical Specification
To study diode clipping circuits.
01 Single level clipping circuits :
1.1 Positive base clipping with diode in series.
1.2 Positive base clipping with diode in shunt.
1.3 Negative base clipping with diode in series.
1.4 Negative base clipping with diode in shunt.
1.5 Negative peak clipping.
1.6 Positive peak clipping.
02 Two level clipping circuits :
2.1 Two level clipping with diodes.
2.2 Two level clipping with zener diodes.
