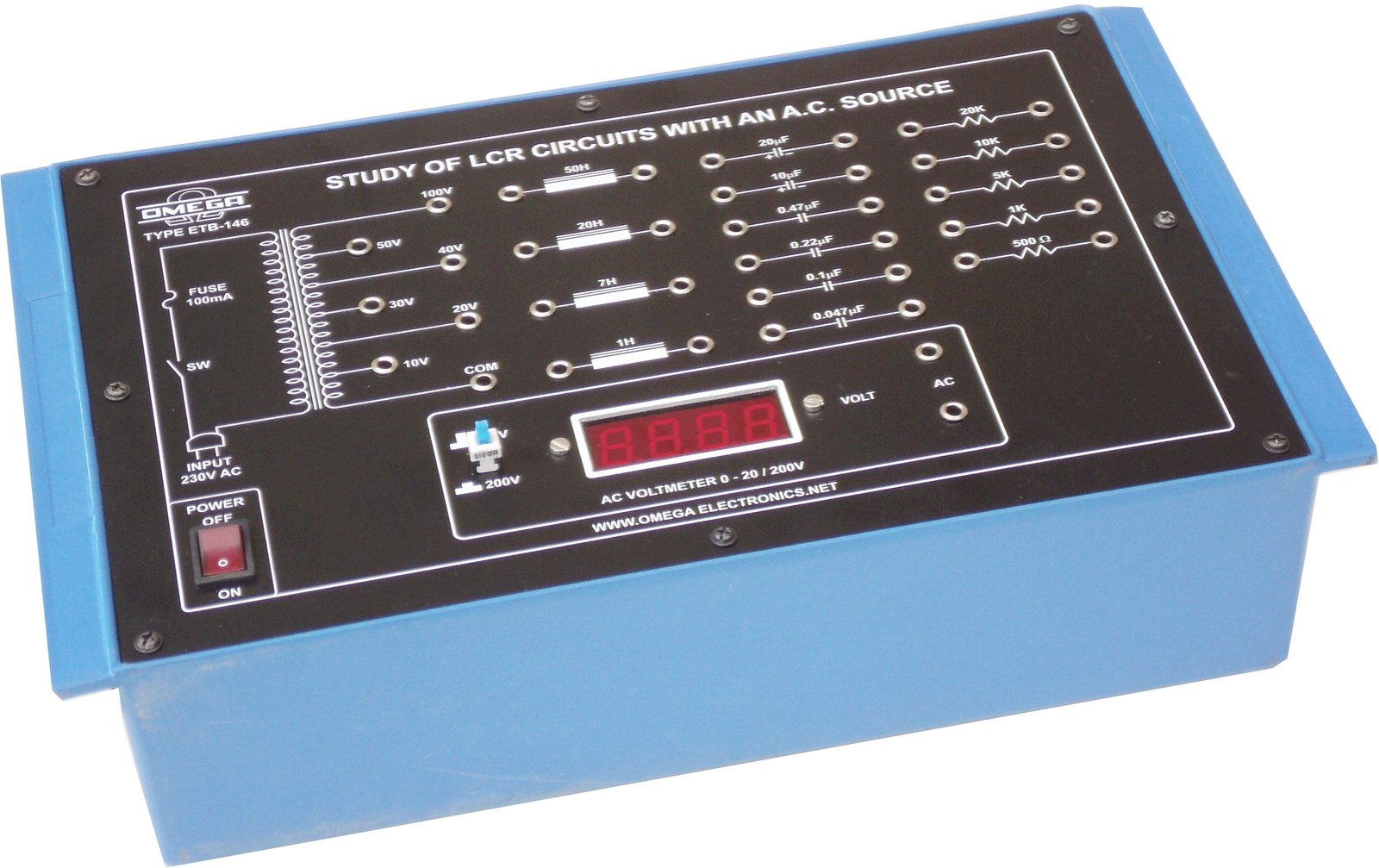

ETB-146
Study of LCR circuits with an AC source having Power Amplifier with power supply and 1 digital meter
Experimental Training Boards (ETB Series)
Technical Specification
01 To determine the equivalent power loss resistance of an inductor.
02 To analyse a complex LR circuit by drawing vector diagrams.
03 To analyse a complex RC circuit.
04 To study a circuit with two inductors in series.
05 To study a circuit with two capacitors in series.
06 To study if VL and VC are always in the opposite phase.
07 To study the impedance of an LCR circuit.
08 To study the phase relationship in a series LCR circuit.
