ETB-111

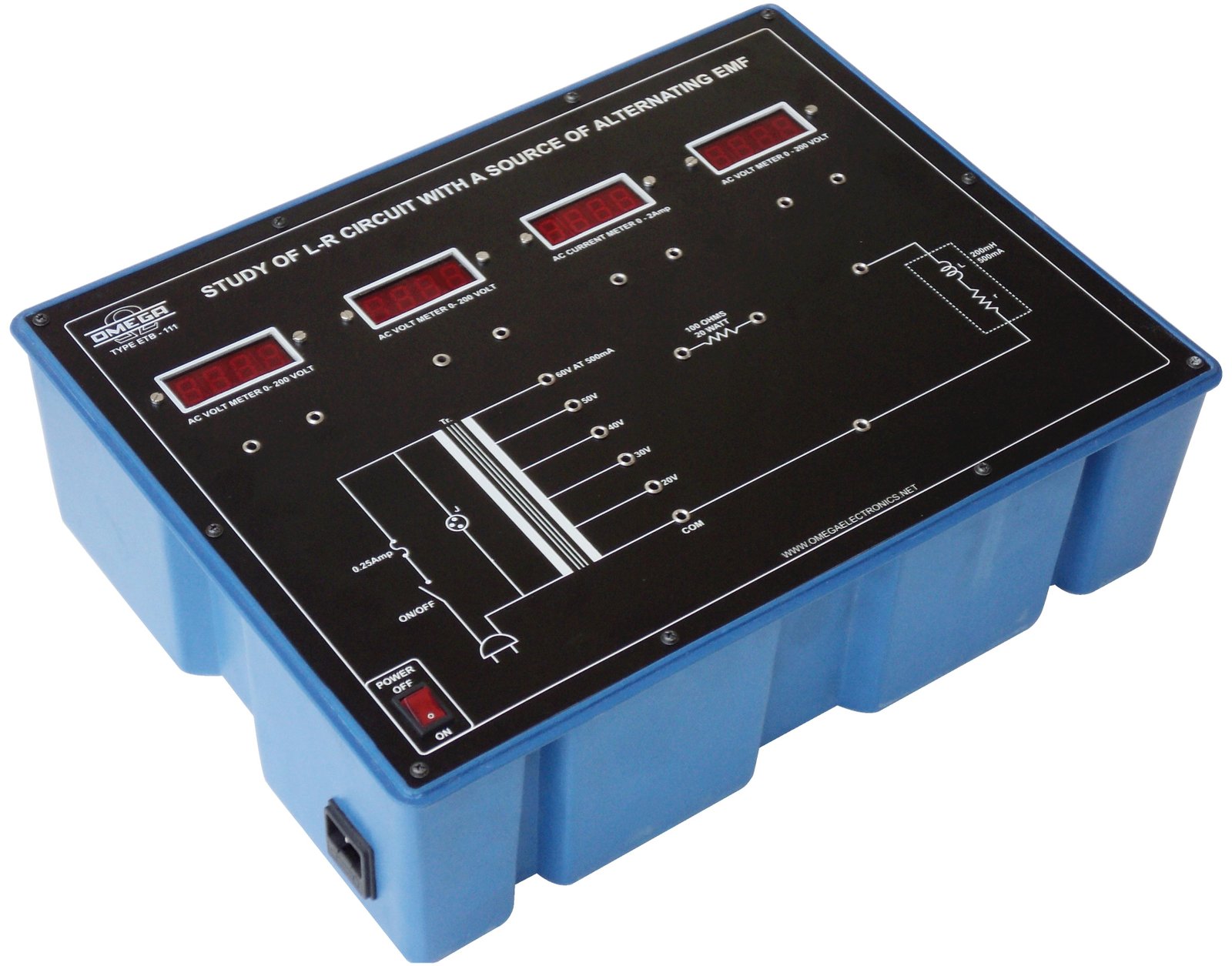

Study of LR Circuit with a source of Alternating EMF with power supply and 4 meters
Experimental Training Boards (ETB Series)
Technical Specification
To study L-R circuit with a source of alternating E.M.F. and thus to determine :
01 The power factor, cos f of the inductive load.
02 The equivalent power loss resistance of the inductor.
03 The inductance of the inductor.
04 The phase difference between applied voltage and that across resistance.
