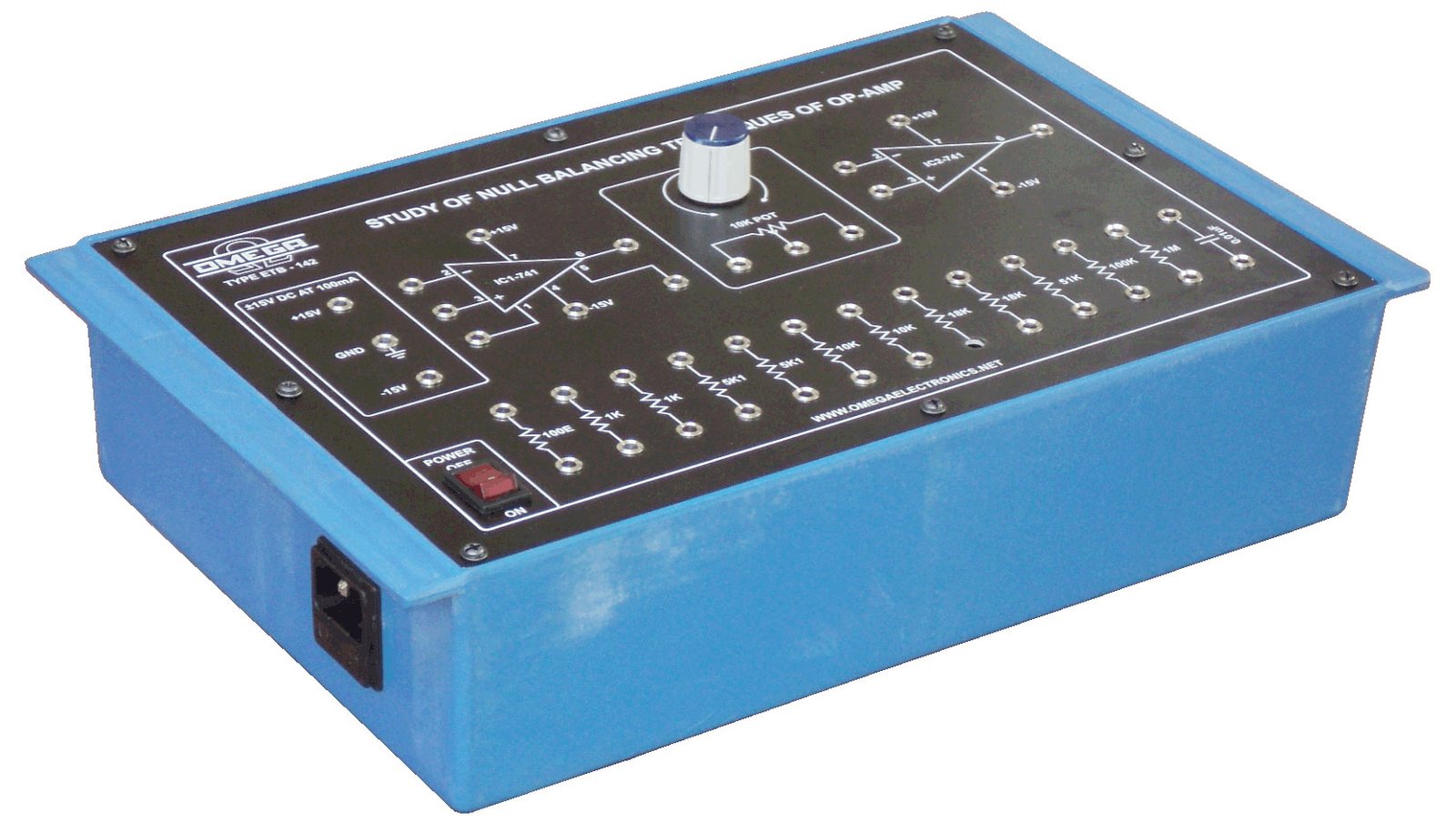

ETB-142
Study of Null-Balancing Techniques of OP-AMP with power supply
Experimental Training Boards (ETB Series)
Technical Specification
Study of Null Balancing Techniques of Operational Amplifiers.
01 INTERNAL OFF SET NULLING.
1.1 For Inverting OP-AMP Circuit.
1.2 For Non-Inverting OP-AMP Circuit.
1.3 For Voltage follower Circuit.
02 UNIVERSAL EXTERNAL OFF SET NULLING.
2.1 Inverting Amplifier, offset voltage applied to the Inverting input.
2.2 Inverting Amplifier, offset voltage applied to the Non-Inverting input.
2.3 Off setting circuit for low gain non-inverting OP-AMP.
2.4 Off setting circuit for high gain non-inverting OP-AMP.
2.5 Off setting circuit for voltage follower.
03 OTHER TYPES OF OFF SET ARRANGEMENTS
3.1 Zero off setting.
3.2 Zero off setting buffer.
