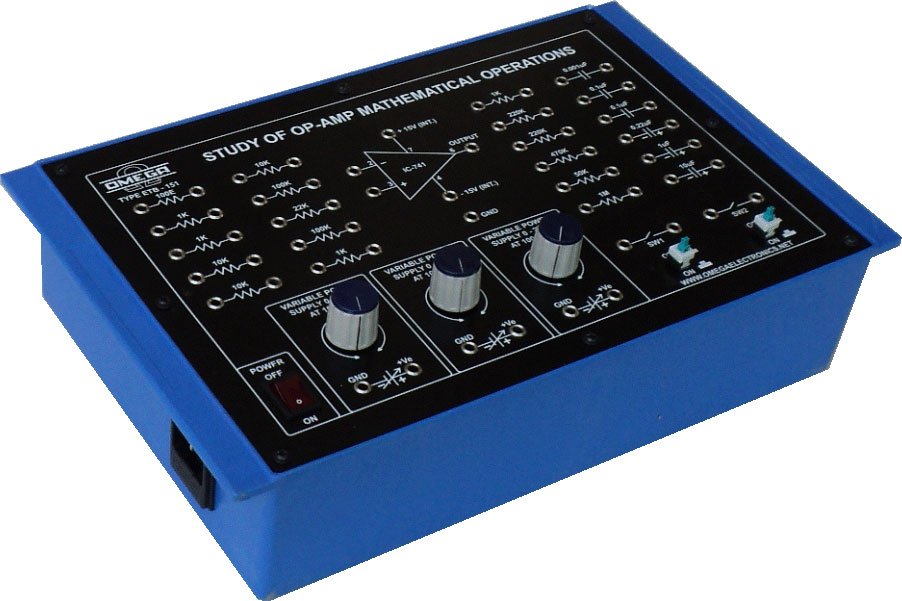

ETB-151
Study of OP-AMP Mathematical Operations with power supply
Experimental Training Boards (ETB Series)
Technical Specification
01 Study of Operational Amplifier in the following modes:
1.1 Inverting Amplifier.
1.2 Non-inverting Amplifier.
1.3 Frequency Response of Inverting A.C. Amplifier.
1.4 Frequency Response of Non-inverting A.C. Amplifier.
1.5 High Input Impedance Inverting Amplifier.
1.6 High Input Impedance Non-inverting Amplifier.
02 To study the following Mathematical Operations :
2.01 Inverting Summing Amplifier.
2.02 Subtractor & Differential Amplifier.
2.03 A.C. Differential Amplifier.
2.04 Adder Subtractor.
2.05 Multiplication by a Constant.
2.06 Division by a Constant.
2.07 Integrating Amplifier for D.C. Input Signals.
2.08 Integrating Amplifier for A.C. Input Signals.
2.09 Differentiation Amplifier.
2.10 Non-Inverting Differentiation.
2.11 Voltage follower or buffer amplifier using D.C. voltage
2.12 Voltage follower or buffer amplifier using A.C. voltage
