ETB-163

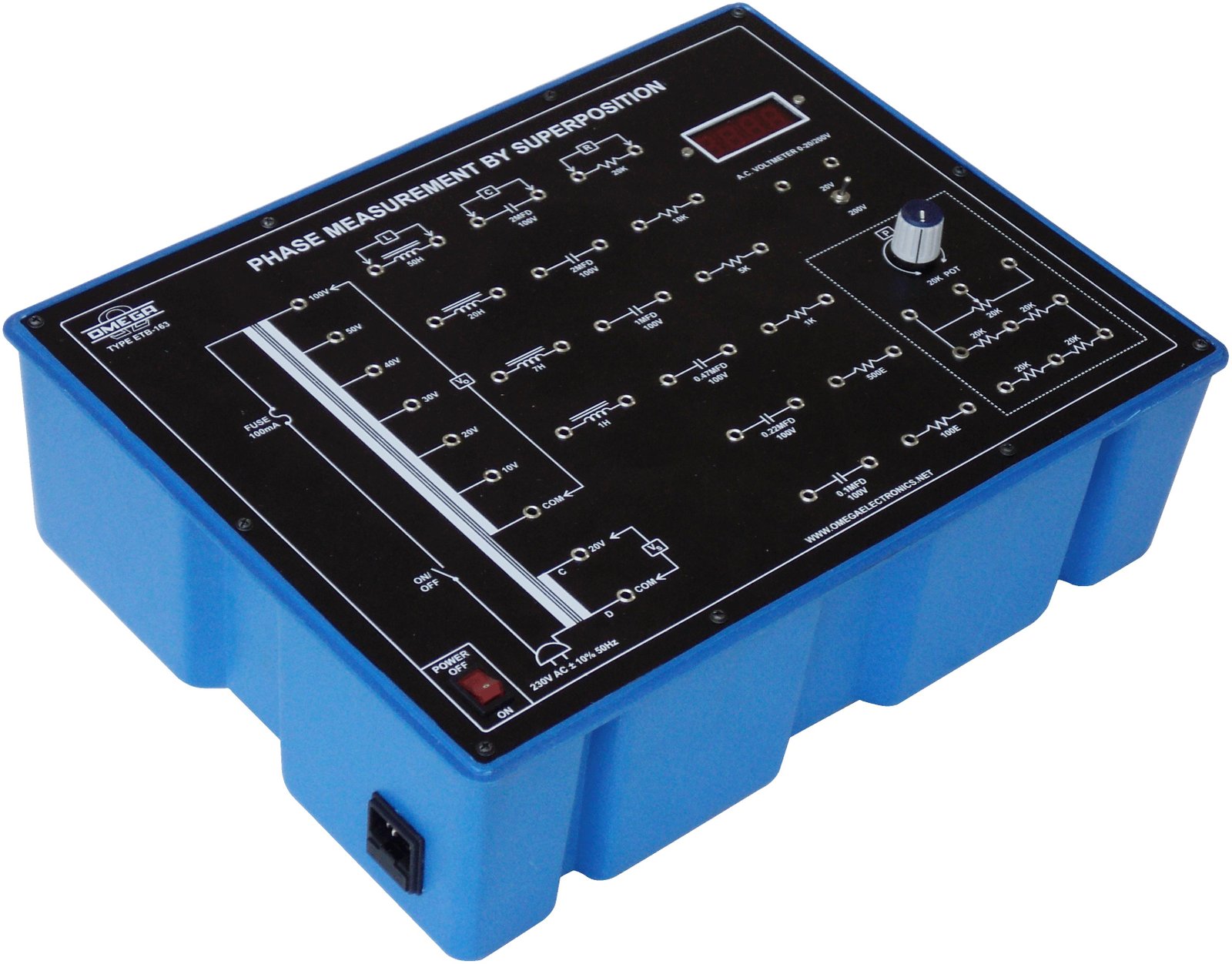

Study of Phase measurement by super position with power supply and 1 multi range meter (C.R.)
Experimental Training Boards (ETB Series)
Technical Specification
Study of phase measurement by superposition :
01 To study the relative phase difference between voltage across resistors.
02 To measure the phase difference between VR and VC in a simple RC circuit.
03 To study more about phase relationship in an RC network.
04 To study the phase relationship in an LR circuit.
05 To study the phase of VR in an LCR circuit.
06 To study the phase relationships amongst various voltages in an LCR circuit.
