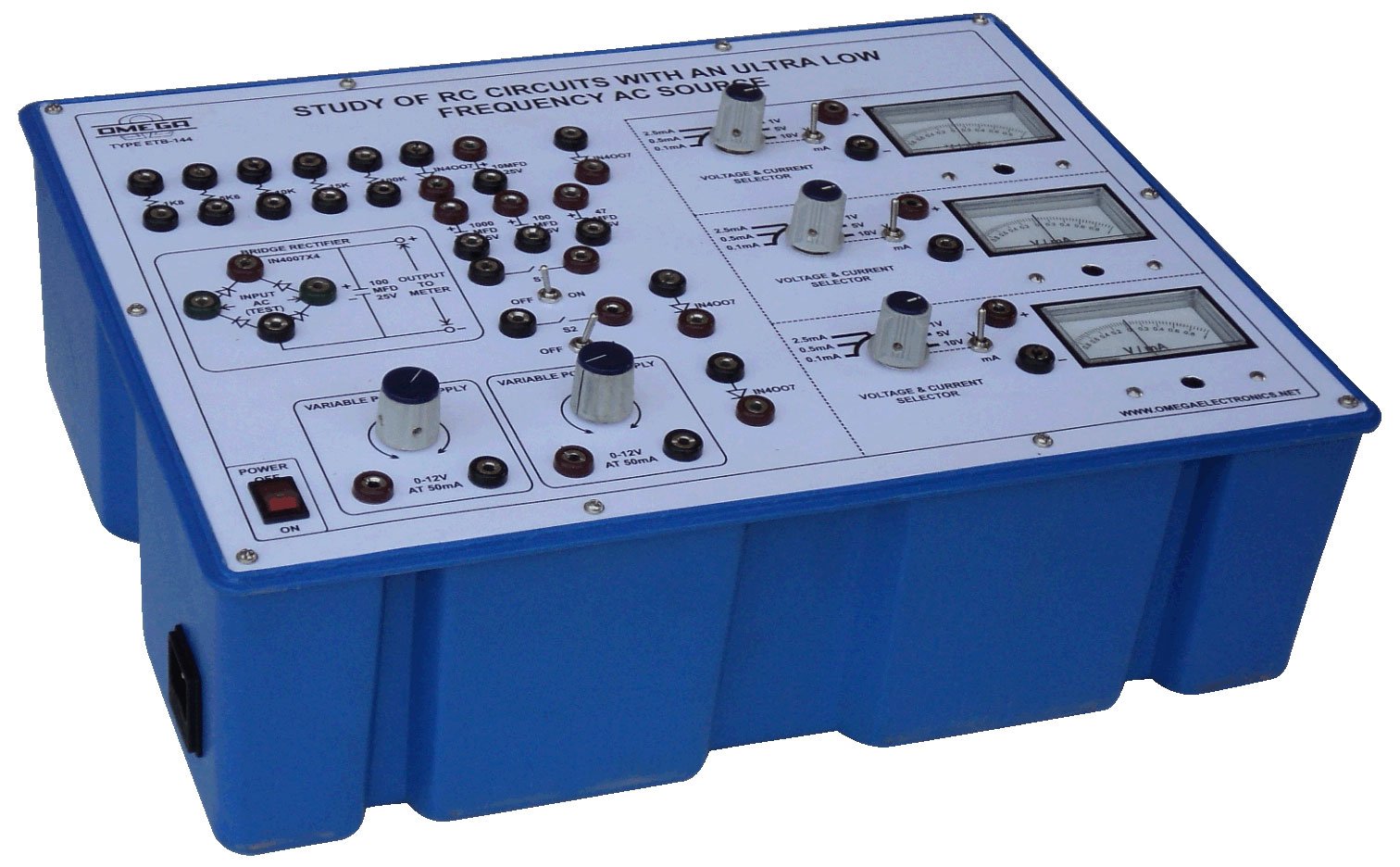

ETB-144
Study of R.C. circuit with an ultra low frequency AC source with power supply and 3 centre 0 meters
Experimental Training Boards (ETB Series)
Technical Specification
01 To make a preliminary study of voltage and phase relationship in a simple RC circuit.
02 To study the voltages in a pure resistive, capacitive and a mixed circuit.
03 To determine the phase difference between VR and VC in a RC circuit.
04 To study the phase difference between VR and VC by measuring the peak voltage values.
05 To study the phase relationship of currents in different parts of a RC circuit.
06 To study the behaviour of a RC circuit at different frequencies.
