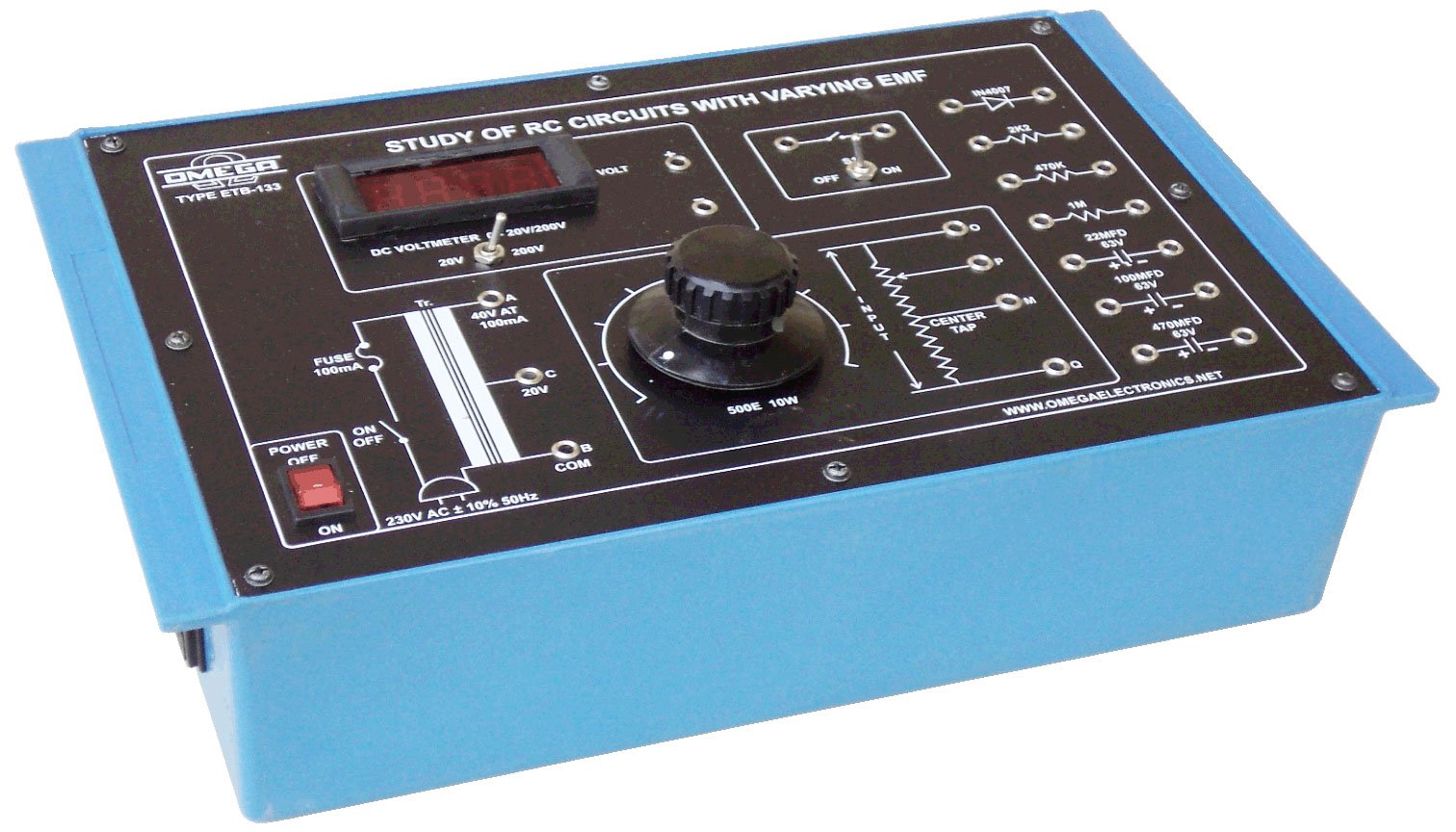

ETB-133
Study of R-C Circuits with Varying EMF power supply and 1 digital dual range meter
Experimental Training Boards (ETB Series)
Technical Specification
To study RC Circuit with varying EMF.
01 To study the charging of a capacitor with pulses of width greater than the time constant of the circuit.
02 To study the charging with rectangular pulses of width much less than the time constant of the circuit.
03 To study the charging with short rectangular pulses of equal and unequal widths (t << RC).
04 To repeat experiment 1, 2 & 3 with pulses of different shapes.
05 To study an RC Circuit with a diode as an integrating system.
06 To study an integrating RC Circuit with alternating input.
07 To study the integrating system with a sinusoidal input.
