ES-215

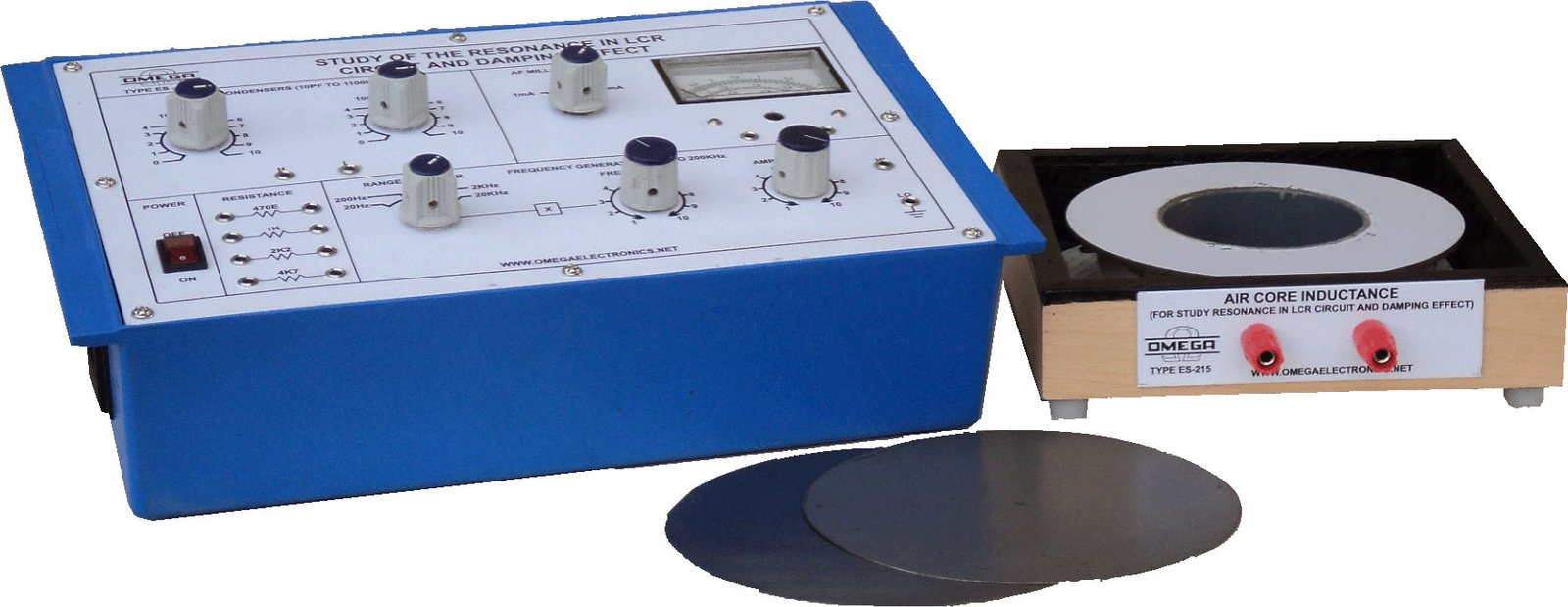

Study of resonance in LCR circuit and damping effect
Physics Laboratory Experimental Set-Ups (ES Series)
Technical Specification
01 To plot the series resonance curve in LCR circuit (air core inductance, two decade condensers and circuit resistance) at fixed frequency by varying condenser (C). Observe damping by a metal (ferromagnetic) plate along with air core Induct ance, find out new resonance curve by varying condenser (C)
02 To plot the series resonance curve in LCR circuit by varying frequency. Observe damping by a metal plate along with air core Inductance, find out new resonance curve by varying frequency (f).
03 To plot the parallel resonance curve in LCR circuit (air core Inductance, two decade condensers and circuit resistance) at fixed frequency by varying condenser (C). Observe damping by a metal (ferromagnetic) plate along with air core Inductance, find out new resonance curve by varying condenser (C).
04 To plot the parallel resonance curve in LCR circuit by varying frequency. Observe damping by a metal plate along with air core Inductance, find out new resonance curve by varying frequency (f).
05 To plot the series resonance curve in LCR circuit by varying frequency. Observe damping effect by using resistances.
