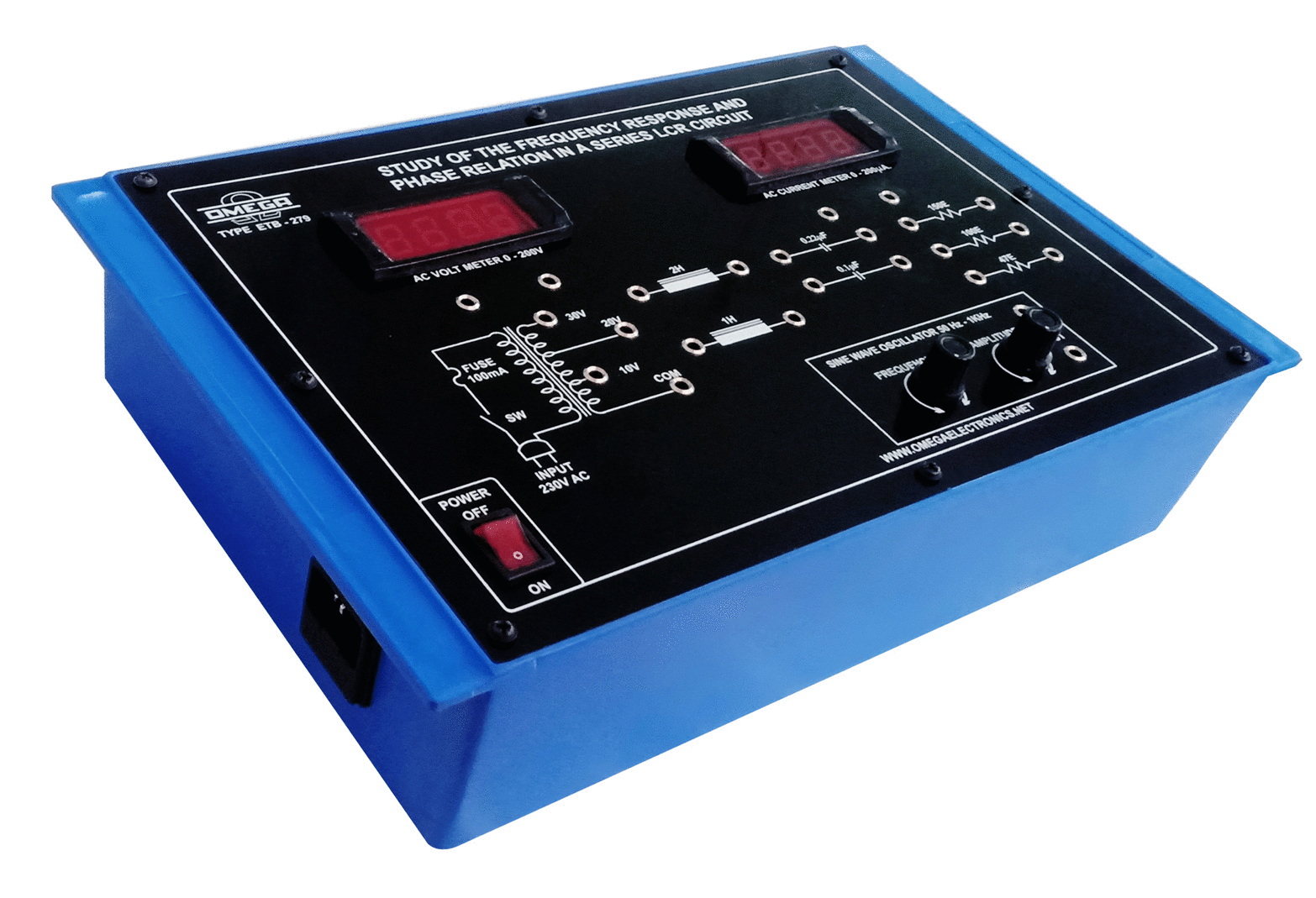

ETB-279
STUDY OF THE FREQUENCY RESPONSE AND PHASE RELATION IN A SERIES LCR CIRCUIT
Experimental Training Boards (ETB Series)
About a Product
STUDY OF THE FREQUENCY RESPONSE AND PHASE RELATION IN A SERIES LCR CIRCUIT
Technical Specification
01 Transformer having secondary tappings of 10V, 20V and 30V A.C. at 100mA. 02 50 Hz to 1KHz Sine wave Oscillator 03 Digital AC Voltmeter 3½ Digit range 200V to read AC Voltages 04 Digital AC Current meter 3½ Digit range 200uA to read AC Current 05 Adequate no. of other electronic components. 06 Mains ON/OFF switch, Fuse and Jewel light. 07 The unit is operative on 230VAC ±10% at 50Hz. 08 Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ meter.
