ES-356
Study of the Variation of Magnetic Field at the Centre of Circular Coils When Turns Remain the Same and Radii vary
Physics Laboratory Experimental Set-Ups (ES Series)
About a Product
OBJECT :-
01 To study the variation of magnetic field at the center of circular coils when turns remain same and radii vary.
Technical Specification
FEATURES :-

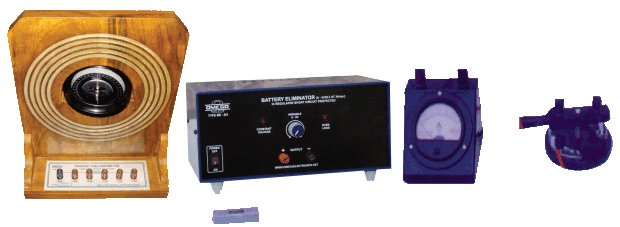

The Set up consists of the following :
01 An apparatus for variation of magnetic field at the center of circular coils when turns remain same and radii vary, fitted with compass box,
Compass box is pye type with bakelite case, metal dial, anti parallax mirror and with aluminum pointer fitted with jewel. OMEGA TYPE TG-191
02 Battery Eliminator : 0-5V D.C. at 3A continuously variable regulated and short circuit protected OMEGA TYPE BE-5/3
03 D.C. Ammeter : 65mm round dial, mounted on bakelite stand, to read 0-3A OMEGA TYPE MO-65.
04 Reversing Key.
05 Spirit level.
