ES-363
Study of variation of magnetic field intensity with current along the centre of current carrying coil (C.R.)
Physics Laboratory Experimental Set-Ups (ES Series)
About a Product
OBJECT :-
01 To study the variation of magnetic field intensity with the current along the center of current carrying coil.
Technical Specification
FEATURES :-

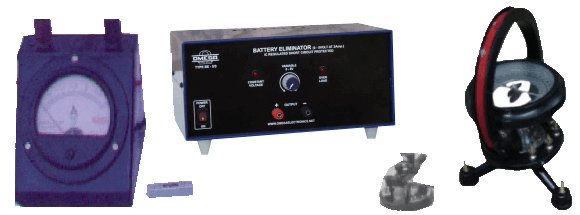

The Set up consists of the following :
01 Tangent Galvanometer : having bakelite ring of 6" dia with three windings of 2, 50 and 500 turns, Compass box and the ring both can be
rotated independently of the base which is fitted with leveling screws OMEGA TYPE TG-192.
02 Battery Eliminator 0 - 5V D.C. at 3A, continuously variable regulated and short circuit protected OMEGA TYPE BE-5/3.
03 D.C. Ammeter, 65mm round dial, mounted on bakelte stand, to read 0-3A OMEGA TYPE MO-65.
04 Reversing Key.
05 Spirit level.
