ETB-107

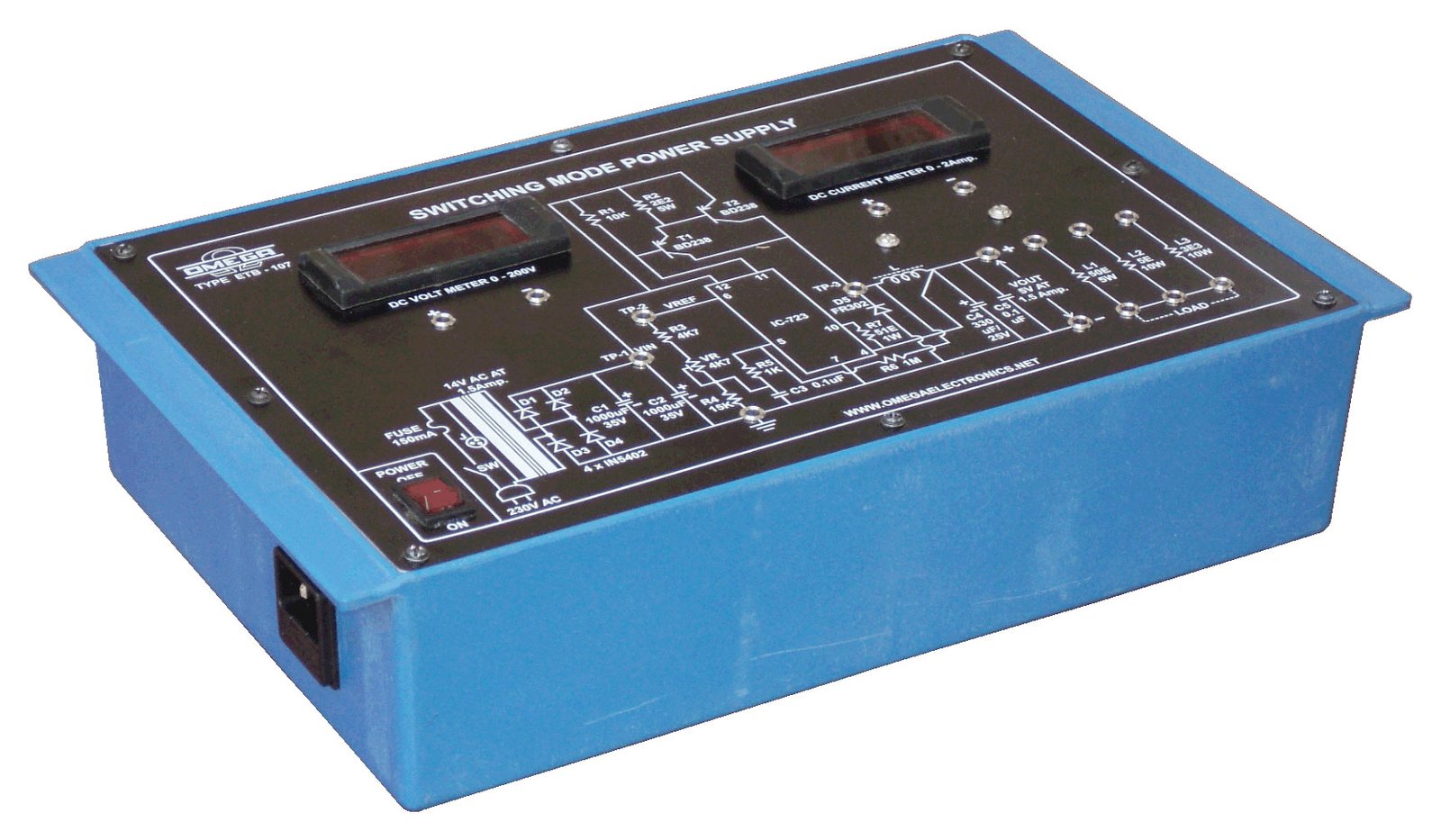

Switching Mode Power Supply (SMPS) with 2 meters
Experimental Training Boards (ETB Series)
Technical Specification
01 To observe various voltages and Switching waveforms on the SMPS Circuit.
02 To demonstrate the effect of load variation on the switching waveform.
03 To measure the following :
3.1 Ripple.
3.2 Load regulation.
3.3 Line regulation.
