ICT-905

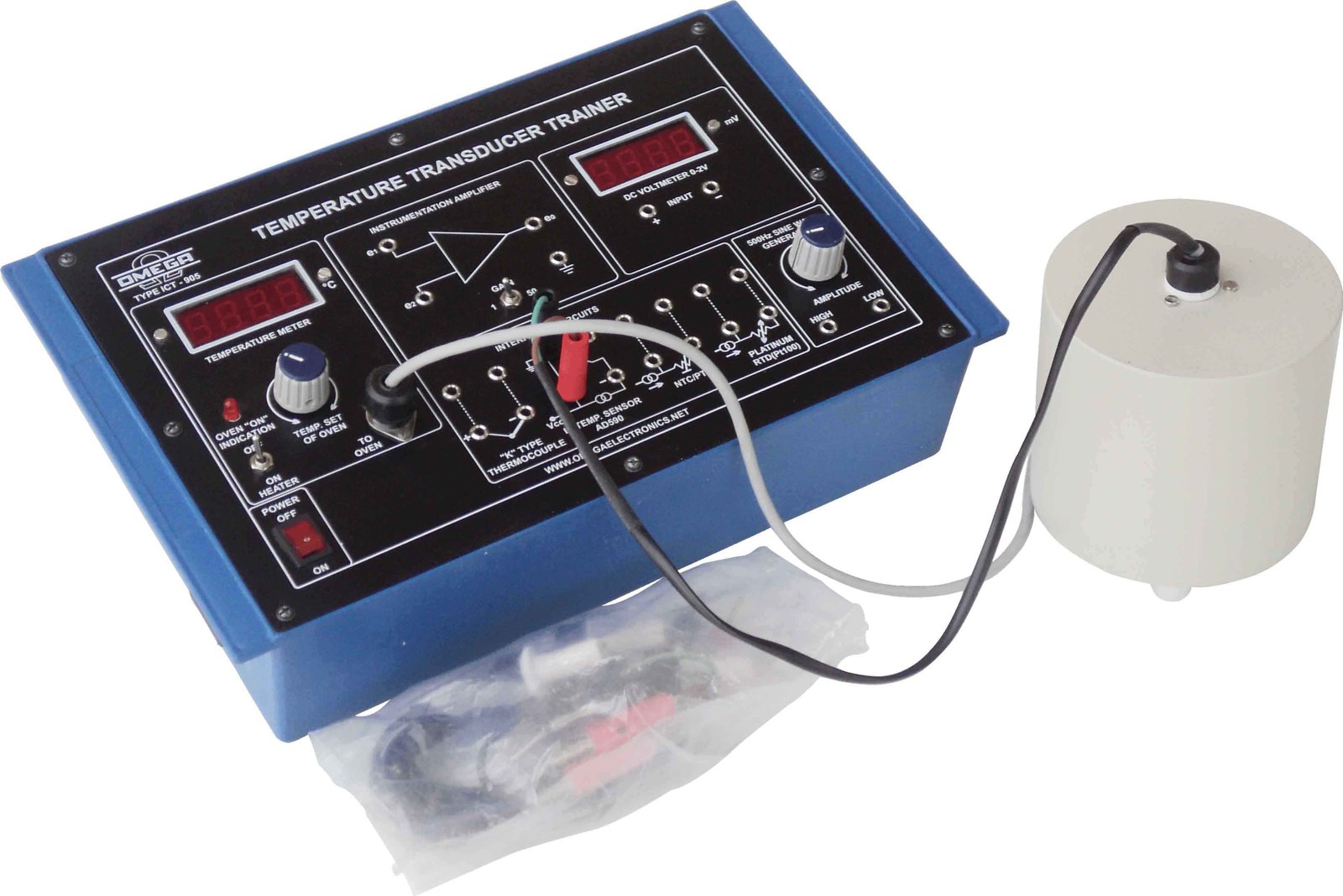

Temprature Transducers Trainer
Instrumentation and Control Trainers (ICT Series)
About a Product
OBJECT :-
Temperature-output voltage characteristics of the following transducers in the temperature range from room temperature to 150º and determination of their parameters
01 Gain and CMRR of the Instrumentation Amplifier
02 Characteristics of a Negative Temperature Coefficient Thermistor (NTC).
03 Characteristics of a Positive Temperature Coefficient Thermistor (PTC).
04 Characteristics of semiconductor Sensor, AD590 up-to 90 ºC only.
05 Characteristics of Thermocouple-Chromel/Alumel (K type).
06 Characteristics of Platinum RTD.
Technical Specification
FEATURES :-
01 Built-in DC Power Supply
02 Functional blocks indicated on-board Mimics
03 Exhaustive Learning Material
04 On board signal conditioning circuitry
TECHNICAL SPECIFICATION :-
01 Temperature transducers : K type T/C , NTC , PTC , AD 590 , Platinum RTD
02 Oven : Temperature Controlled up-to 120 o C with digital display
03 Voltmeter : Digital Voltmeter (0-2V)
04 Instrumentation Amplifier : Built in with selectable gain
05 Power Supply : 230V 5%, 50Hz
