ETB-76

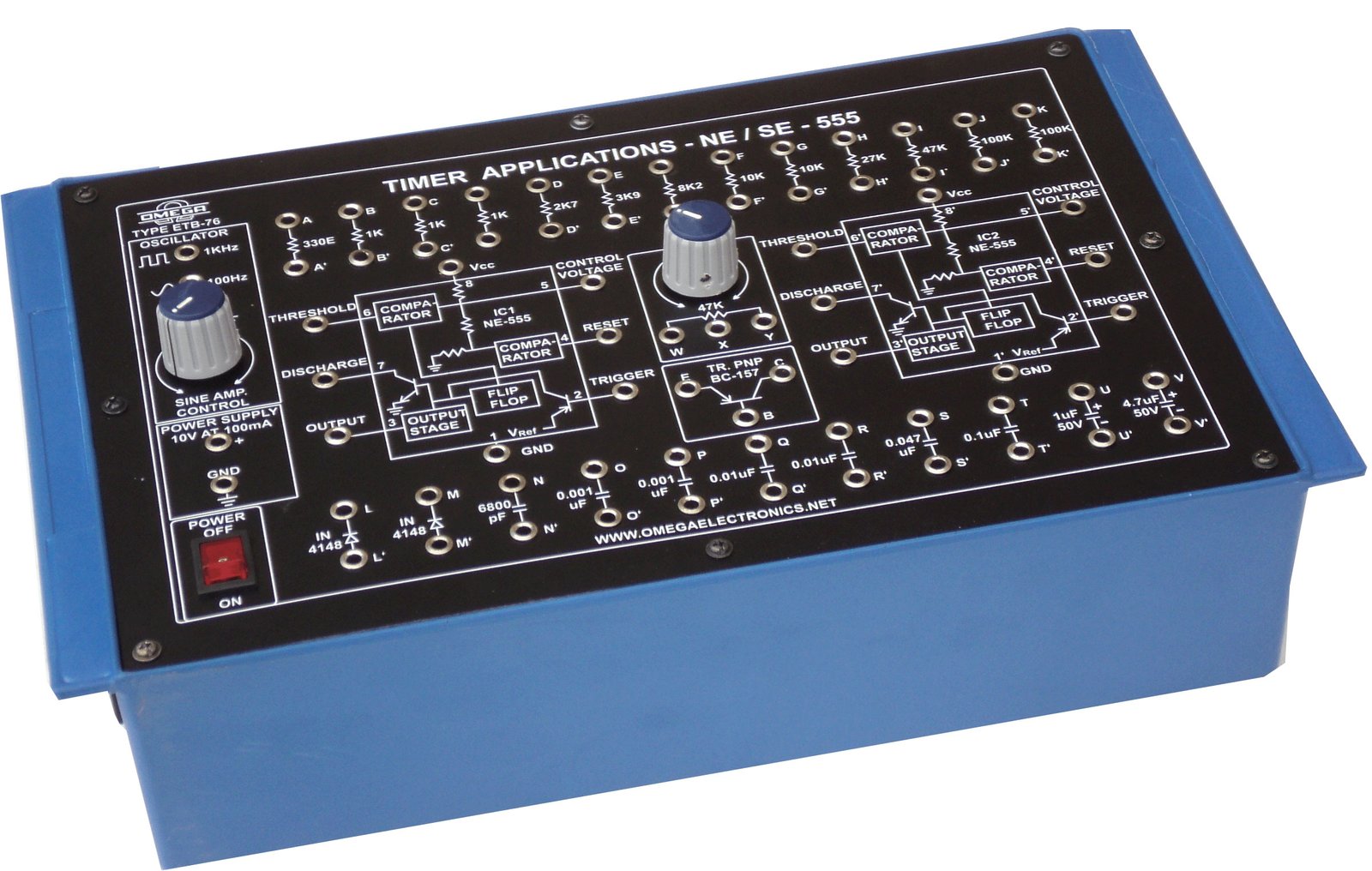

Timer Applications IC-555 No. 1 with power supply and Oscillator
Experimental Training Boards (ETB Series)
Technical Specification
To study different applications of Timer IC 555.
01 Astable Multivibrator.
02 Mono-Stable Multivibrator.
03 Frequency Divider.
04 Linear Ramp Generator.
05 Square Wave Generator.
06 Missing Pulse Detector.
07 Pulse Width Modulation.
08 Pulse Position Modulation.
09 Schmitt Trigger.
10 Sequence Generator.
11 Bistable Multivibrator.
12 Simple Clock Generator.
