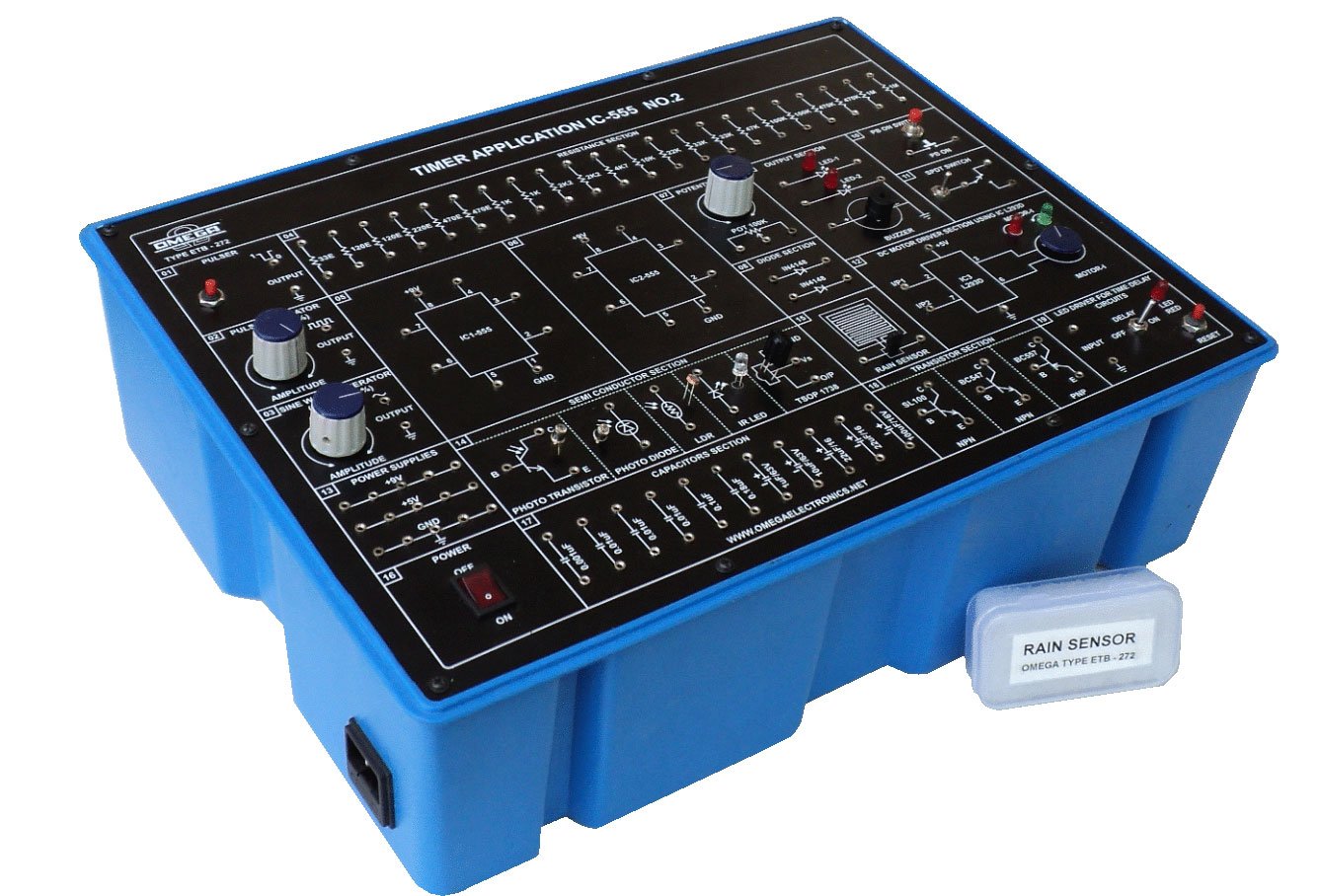

ETB-272
TIMER APPLICATIONS USING IC-555 No. 2
Experimental Training Boards (ETB Series)
Technical Specification
01 To Study Pulse Generator using IC-555.
02 To Study Timer using IC-555.
03 To Study Sequential Timer using IC-555.
04 To Study Pulse Width Modulator (PWM) using IC-555.
05 To Study Time Delay Circuits using IC-555.
06 To Study Burglar Alarm Using Timer IC-555 & Breaking of wire and LDR.
07 To Study Burglar Alarm Using Timer IC-555 Breaking of Wire & Photo Transistor
08 To Study Burglar Alarm Using Timer IC-555 breaking of wire and Photo Diode.
09 To Study Light/Dark Detection Using Timer IC-555 & LDR.
10 To Study Rain Alarm Using Timer IC-555 & Rain Sensor.
11 To Study DC Motor Control By PWM Using Timer IC-555 & Motor Driver IC L293D.
12 To Study LED Flasher Circuit Using Timer IC-555.
13 To Study Analog Light wave Transmitter/Receiver Using Timer IC-555, IR LED & TSOP1738 .
