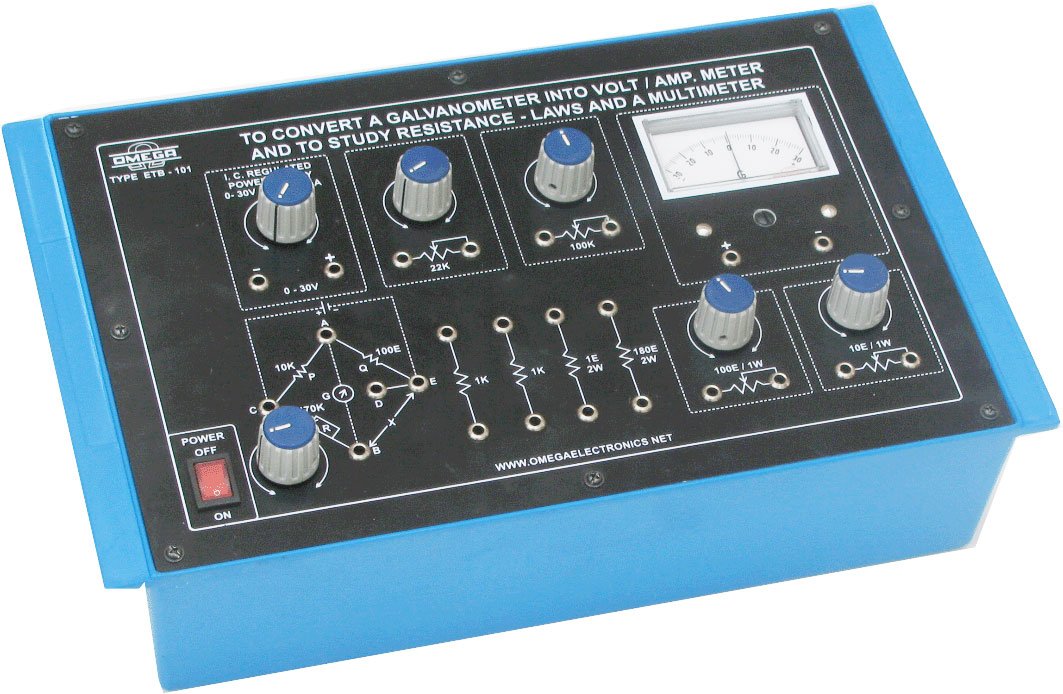

ETB-101
To convert a Galvanometer into Volt/ Amp. meter and to study resistance laws and a multimeter with power supply and 2 galvanometer
Experimental Training Boards (ETB Series)
Technical Specification
01 To determine the resistance of a Galvanometer by half deflection method.
02 To determine the figure-of-merit of a Galvanometer.
03 To convert a Galvanometer into an Ammeter of a given range and to calibrate it.
04 To convert a Galvanometer into a Voltmeter of a given range and to calibrate it.
05 To study the laws of Resistances using an Ammeter.
06 To study the laws of Resistances using a Voltmeter.
07 To study the laws of Resistances using a Wheatstone Bridge.
08 To study the laws of Resistances using a Post Office Box.
09 To use a Multimeter for measuring :
9.1 Resistances.
9.2 Resistances in series.
9.3 Resistances in parallel.
9.4 DC Voltage.
9.5 DC Current.
