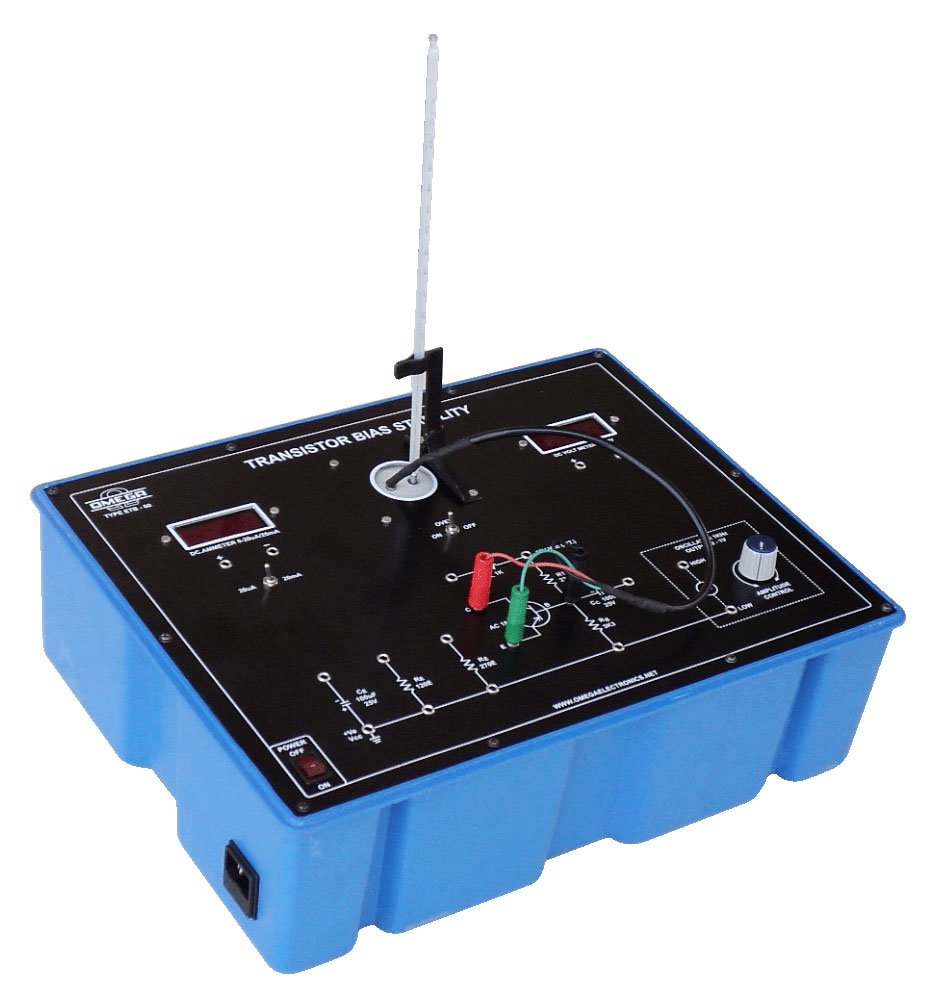

ETB-60
Transistor Bias Stability with power supply 1KHz Oscillator and 2 meters
Experimental Training Boards (ETB Series)
Technical Specification
01 To study the leakage current variation with temperature.
02 To see the shift in Q point at different operating temperatures.
03 To see the effect of temperature on stability of an amplifier.
04 To see the distortion in a single stage amplifier as a result of change in Q point.
