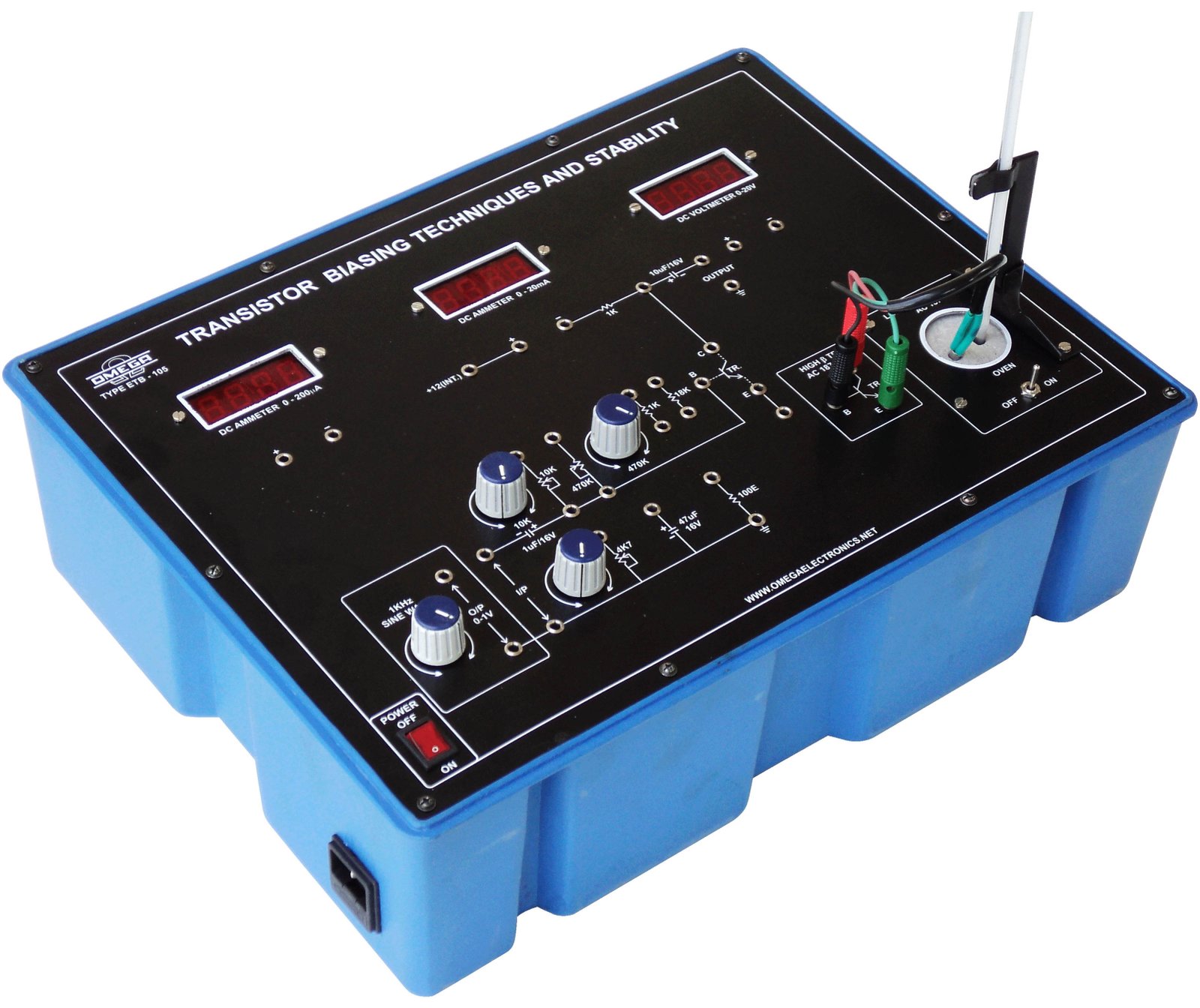

ETB-105
Transistor Biasing Techniques & Stability with power supply 1KHz, Oscillator and 3 meters
Experimental Training Boards (ETB Series)
Technical Specification
01 Study of Q-point variation due to transistor replacement (Changes in b) in:
1.1 Fixed-bias circuit.
1.2 Collector to base bias circuit.
1.3 Self bias (Emitter bias) circuit.
1.4 Self bias (Emitter bias) in addition to voltage divider bias circuit.
02 A qualitative comparison of the effect of temperature on bias stability of the above four biasing circuits.
