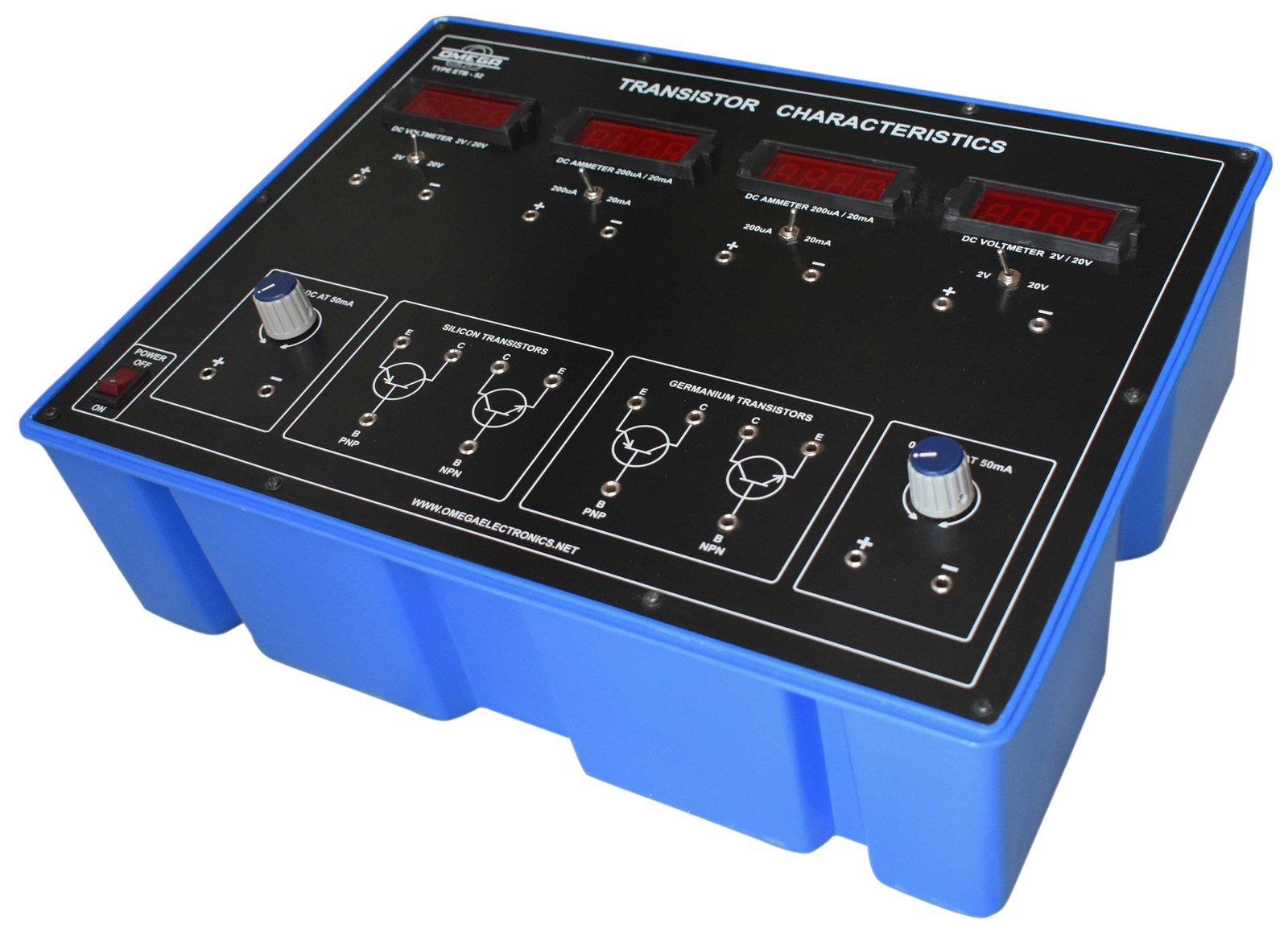

ETB-52
Transistor Characteristics
Experimental Training Boards (ETB Series)
About a Product
OBJECT :-
To study and plot the Transistor input and output Characteristics in the following configurations :
01 Common Emitter configuration .
02 Common Base configuration.
03 Common Collector configuration.
04 Transfer Characteristics of transistor.
Technical Specification
FEATURES :-
The board consists of the following built-in parts :
01 Two 0-10V D.C. at 50mA, continuously variable Power Supplies for Base Emitter & Collector Emitter junctions.
02 Two Digital Voltmeter DC 3½ Digit Having Dual range of 2V / 20V.
03 Two Digital Current meter DC 3½ Digit Having Dual range of 200uA / 20mA
04 Two silicon (NPN & PNP) transistors and two Germanium (NPN & PNP) transistors.
05 Adequate no. of other electronic components
