ETB-45

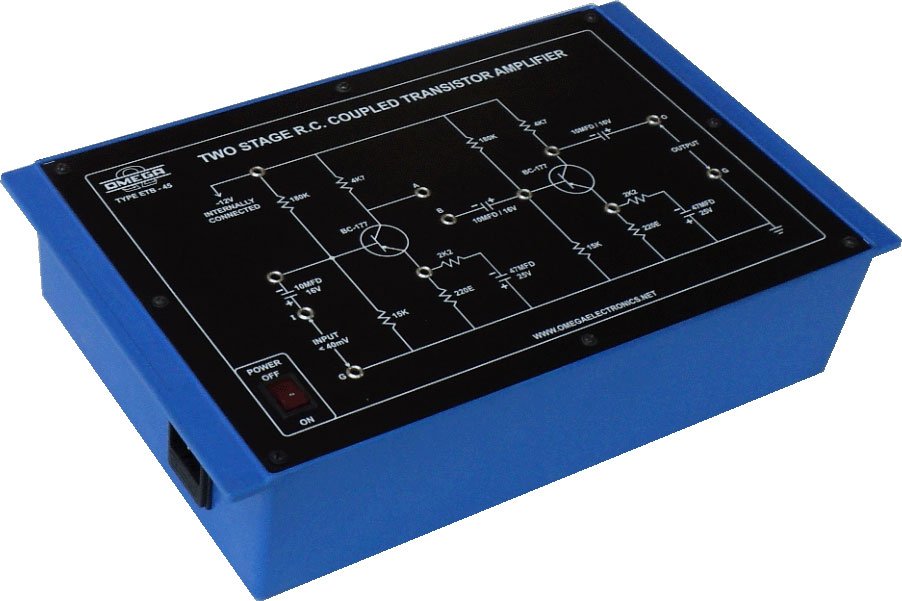

Two Stage R-C Coupled Transistor Amplifier with power supply
Experimental Training Boards (ETB Series)
Technical Specification
Study of the characteristics of Two Stage R-C Coupled Transistor Amplifier :
01 Study of the overload characteristics of the amplifier.
02 Study of the frequency response of the individual as well as the cascade amplifier.
03 Calculate the output and input impedance of the individual stages as well as that of cascade amplifier.
