ETB-070

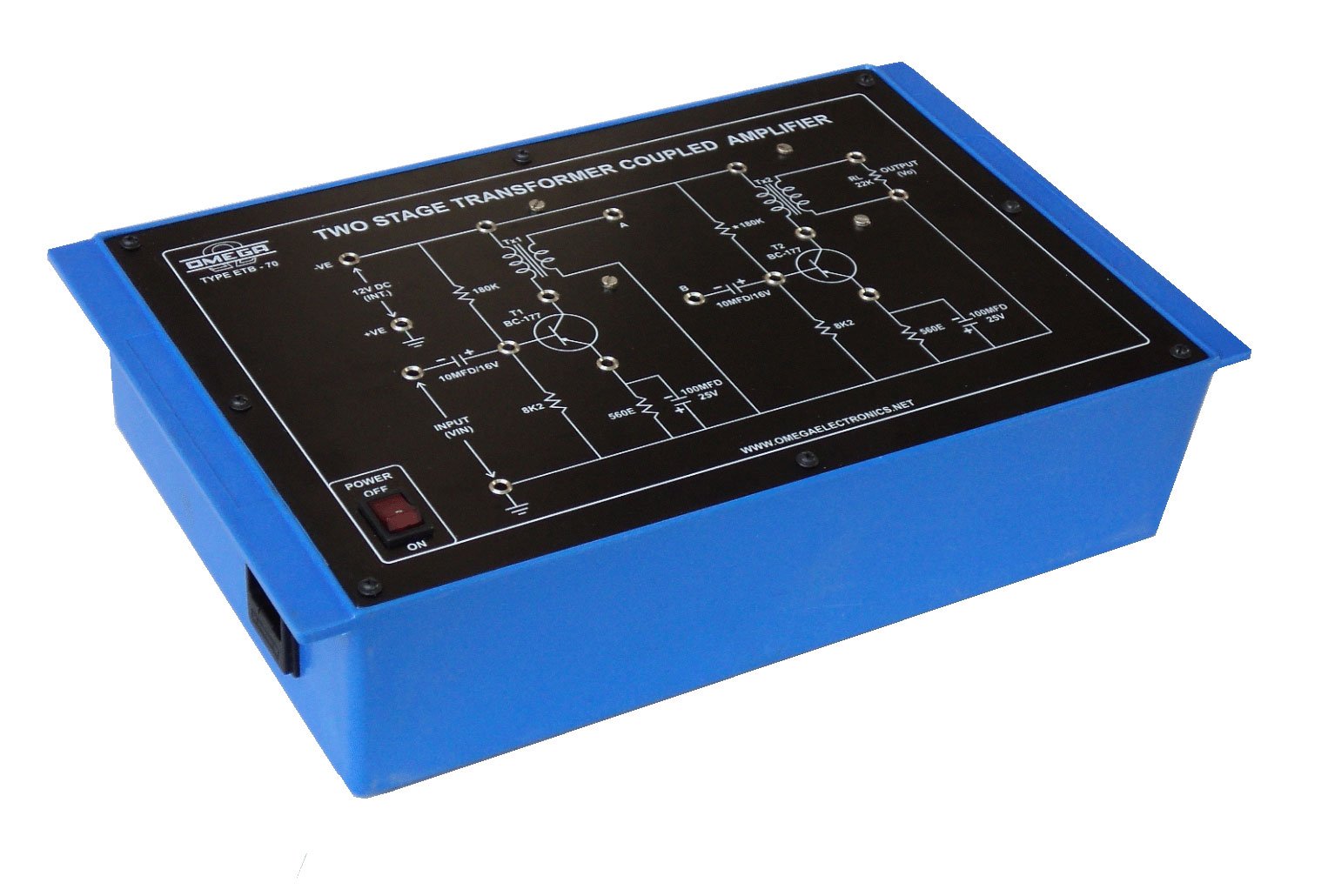

Two Stage Transformer Coupled Amplifier with power supply
Experimental Training Boards (ETB Series)
Technical Specification
To study the performance characteristics of a Two Stage Transformer Coupled Amplifier :
01 To plot frequency response characteristics.
02 To find the lower & upper cut-off frequency & find out the band-width of the amplifier.
03 To compare the frequency response characteristics of two stage transformer coupled amplifier with that of two stage R.C. Coupled amplifier OMEGA TYPE ETB-45.
