ETB-064

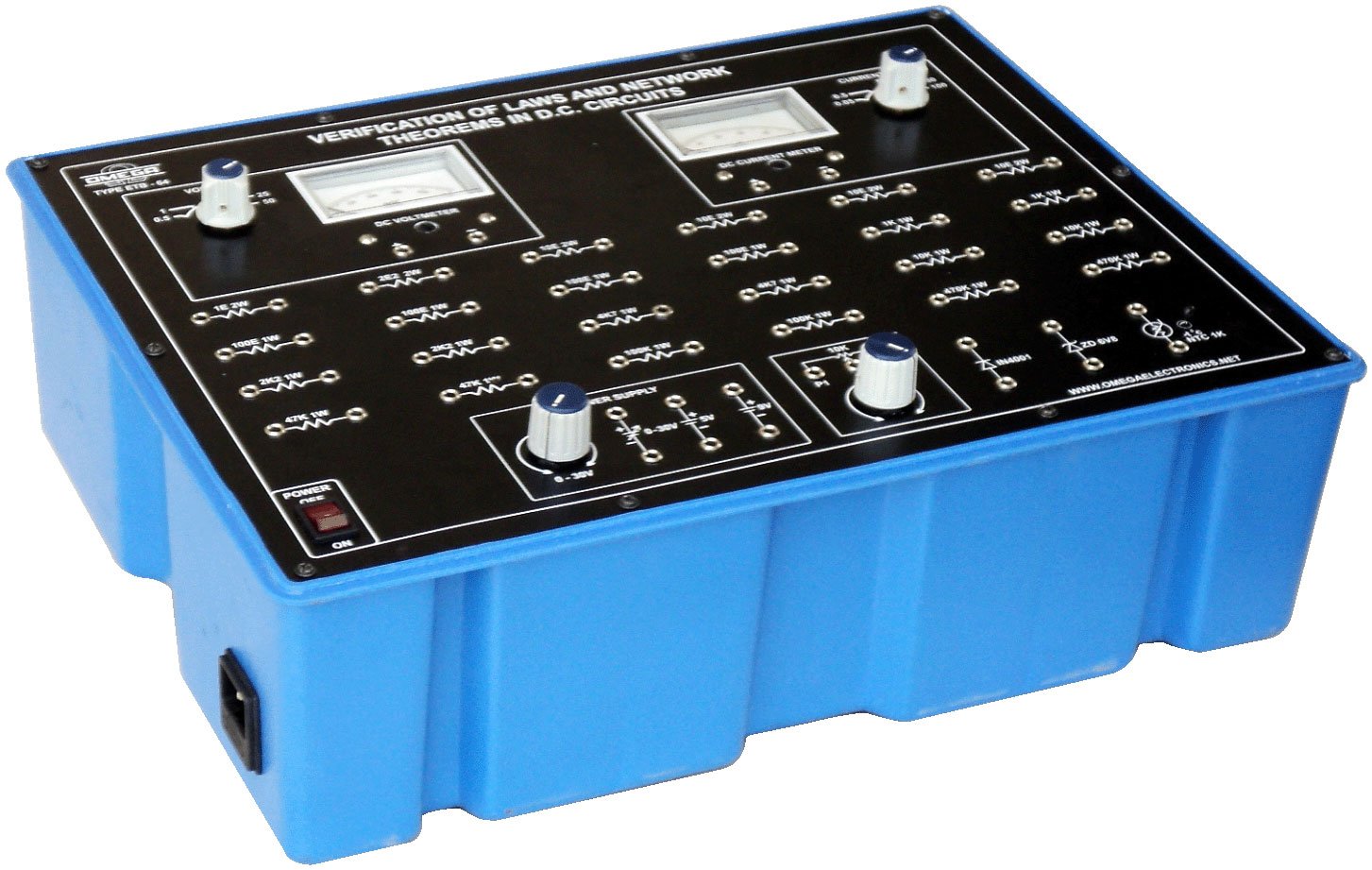

Verification of Laws & Network Theorems in DC Circuits with power supply and 2 meters (C.R.)
Experimental Training Boards (ETB Series)
Technical Specification
01 Verification of Ohm’s Law.
02 To draw the V-I characteristics for studying the D.C. behavior of the following :
2.1 Ideal resistance.
2.2 Semiconductor diode.
2.3 Zener diode.
2.4 Thermistor (NTC Type).
03 To verify Kirchoff’s current law and voltage law.
3.1 Kirchoff's current law
3.2 Kirchoff's voltage law
04 Verification of the series & parallel laws for resistence.
4.1 Series resistance
4.2 Parallel Resistance
05 Verification of Superposition Theorem.
06 Study of potential divider.
07 Verification of Maximum Power Transfer Theorem.
08 To verify Thevenin’s Theorem and to find equivalent voltage source circuit.
09 To verify Norton’s Theorem and to find equivalent current source circuit.
10 To verify the Reciprocity Theorem and to measure current in a branch containing voltage source after shifting it to some other branch.
11 To study the design of a multimeters.
11.1 Designing a DC current meter
11.2 Multi range DC current meter
11.3 Designing a DC voltmeter
11.4 Multi range DC voltmeter
11.5 Designing OHM's meter
