ETB-201

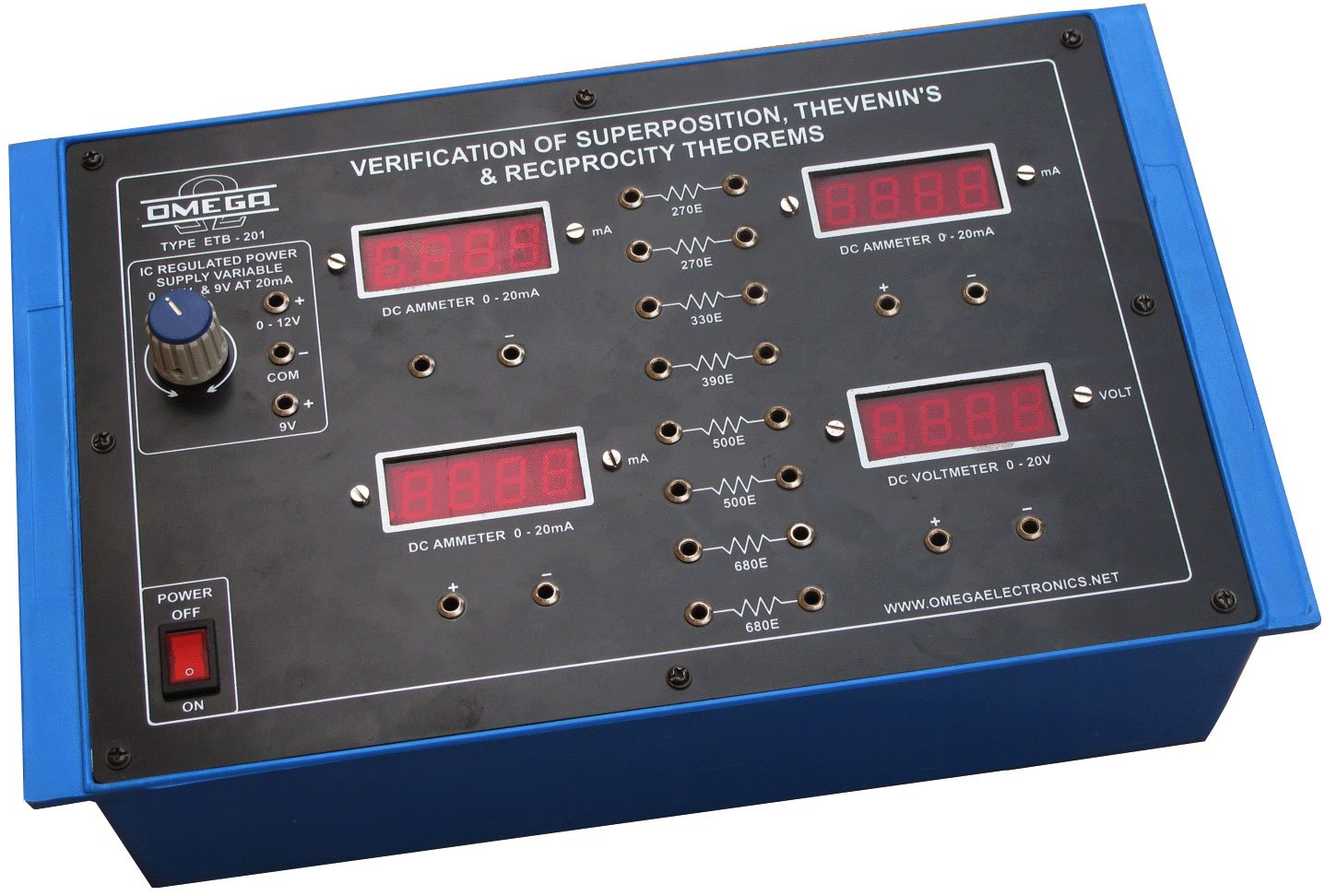

Verification of Superposition, Thevenin's & Reciprocity Theorems with Power Supply and 4 digital meters (C.R.)
Experimental Training Boards (ETB Series)
Technical Specification
01 To verify the Superpositon Theorem and to calculate current in any branch of a multisource using Superposition Theorem
02 To verify Thevenin’s Theorem and to calculate Thevenin’s equivalent of given circuit.
03 To verify the Reciprocity Theorem and to mesure current in a branch containing voltage source after shifting it to some other branch.
