ETB-203

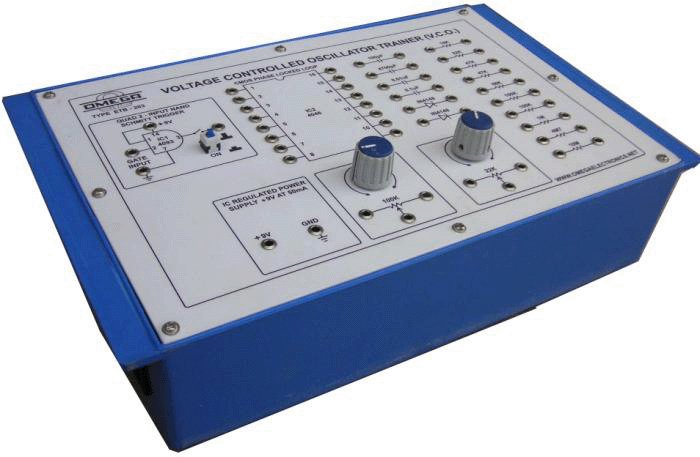

Voltage Controlled Oscillator (V.C.O.) Trainer with Power Supply
Experimental Training Boards (ETB Series)
Technical Specification
To study Volage Controlled Oscillator (V.C.O.) and varify the frequency variation in accordance with input voltage.
01 Constant frequency
02 Wide range VCO, variable from near zero to above 1.5 KHz.
03 Wide range VCO with frequency fully variable down to zero
04 Restricted range VCO
05 Universal Clock/Square wave Generator
06 FSK Generator.
