ETB-86

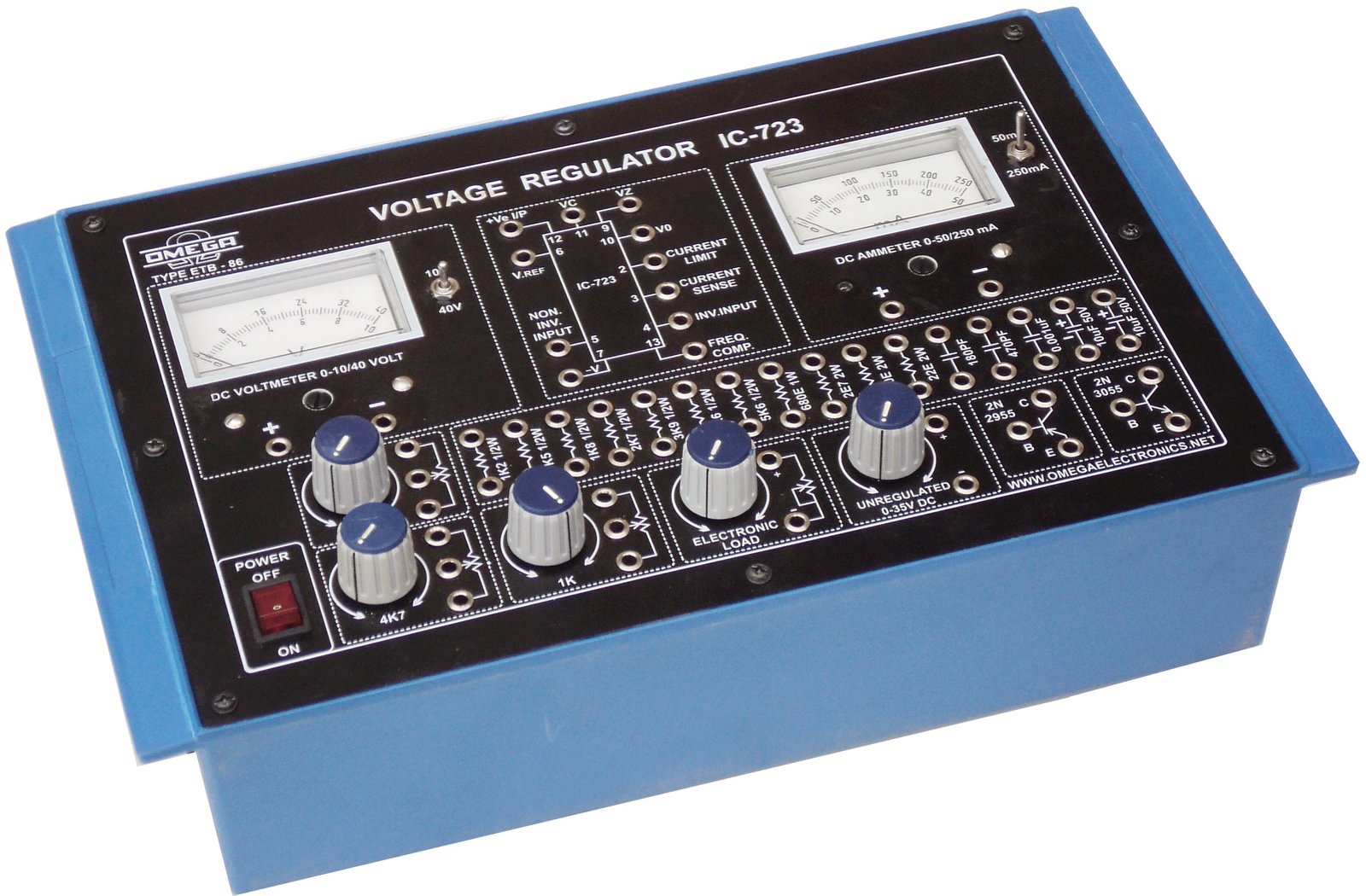

Voltage Regulator IC 723 with power supply and 2 dual range meters
Experimental Training Boards (ETB Series)
Technical Specification
01 To study and measure the following parameters of IC 723 :
1.1 To Measure Load Regulation of IC 723
1.2 To Measure Line Regulation of IC 723.
02 To study the following applications :
2.1 Low voltage regulator circuit 2 to 7V.
2.2 High voltage regulator circuit 7 to 27V.
2.3 Voltage regulator with increased current capability using external NPN power transistor.
2.4 Voltage regulator with increased current capability using external PNP power transistor.
2.5 Voltage regulator with fold back current limiting.
2.6 Negative voltage regulator.
